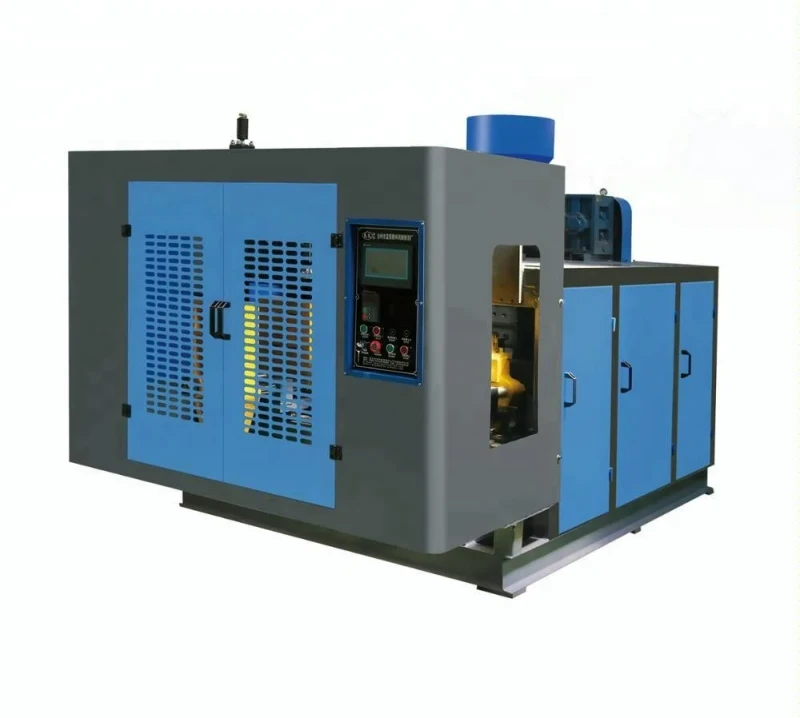

Plastic PP HDPE Bottle Barrel Jerrycan Blow Molding Machine High Speed 1L 2L 3L 5L Extrusion Blow Moulding Blue

Plastic PP HDPE Bottle Barrel Jerrycan Blow Molding Machine High Speed 1L 2L 3L 5L Extrusion Blow Moulding Blue
  • Plastic PP HDPE Bottle Barrel Jerrycan Blow Molding Machine High Speed 1L 2L 3L 5L Extrusion Blow Moulding Blue

    • Plastic PP HDPE Bottle Barrel Jerrycan Blow Molding Machine High Speed 1L 2L 3L 5L Extrusion Blow Moulding Blue

    Request a Quote
    plastic processedPP, HDPE, PE, PE/PP, HDPE/PPClamping Force (kN)70
    voltage380V/50HZautomationAutomatic
    No. of Screw Heating Zone7plc brandSiemens
    core componentsPLC, Motor, Pumpkey selling pointsLong Service Life
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)60 kg/hpower (kw)14
    weight (t)3dimension(l*w*h)3.1*1.7*2.1m
    Screw L/D Ratio22screw diameter (mm)65 mm
    screw heating power(kw)9 kWextruder motor power(kw)11 kW
    mold platen size(width)(mm)200 mmmold platen size(height)(mm)300 mm
    air pressure(mpa)0.7 MPaair comsumption(m³/min)1.0 m³/min
    die head heating power(kw)9 kWBlow Moulding TypeExtrusion Blow Moulding
    After-sales Service ProvidedEngineers available to service machinery overseasAutomaticYes
    Nameextrusion blow molding machineColorBlue
    MaterialHDPE LDPE PE PETGTypeExtrusion Blowing Machine
    Key wordsextrusion blow molding machineSuitable bottle3000-5000ml bottles
