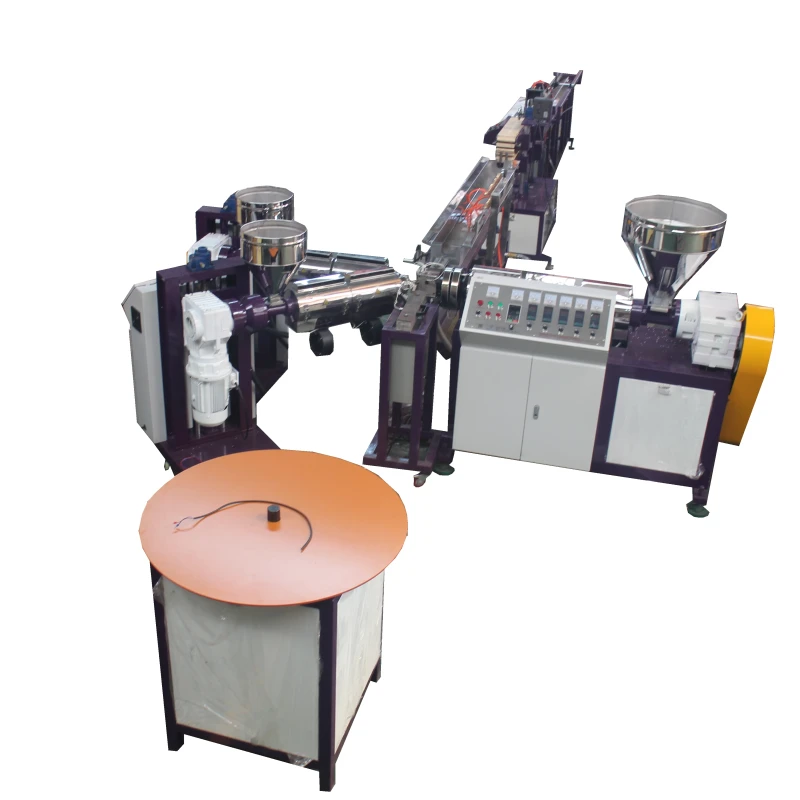

Plastic PVC TPE TPV Seal Gasket Strip Making Machine

Plastic PVC TPE TPV Seal Gasket Strip Making Machine
  • Plastic PVC TPE TPV Seal Gasket Strip Making Machine

    • Plastic PVC TPE TPV Seal Gasket Strip Making Machine

    Request a Quote
    applicationBar, Wire, Pipe, Granules, Sheet, Film, Profile, Plates, Filament, Pelletizing, window and doorplastic processedPVC, PVC PE TPE PP
    extruder typesingle screwscrew diameter (mm)45
    voltage220/380Screw L/D Ratio28:1
    Screw Material38CrMoAlAkey selling pointsHigh Productivity
    machinery test reportProvidedvideo outgoing-inspectionProvided
    core componentsMotor, Gear, ScrewScrew DesignSingle-screw
    Screw Speed (rpm)50Weight (KG)1102
    After-sales Service ProvidedEngineers available to service machinery overseasSJ55ExtruderScrew diameter: 55mm. L/D = 25 : 1
    SJ45ExtruderScrew diameter: 45mm. L/D = 25 : 1Gear boxGear hardening, polished, horizontal
    BarrelSubstrate: 38CrMoAlA, nitridingSJ55 Control panel5 zone temperature control, 4 air cooling
    Vacuum sizing table2.5 m length, 2.2kw , stainless steelDrawing unitMotor: 1.5 kW, frequency varying
    Cutting machineMaximum cutting length 3 meters
