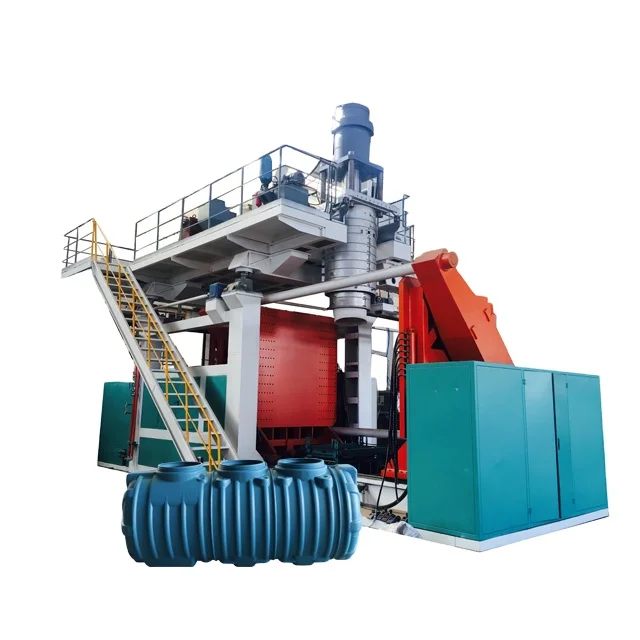

Plastic Septic Water Tank Blow Moulding Making Manufacturing Machine Double Layer
Plastic Septic Water Tank Blow Moulding Making Manufacturing Machine Double Layer
| plastic processed | HDPE, PE | Clamping Force (kN) | 800 |
| voltage | Customized | automation | Automatic |
| No. of Screw Heating Zone | 4 | plc brand | Siemens |
| core components | PLC, Engine, Bearing, Gearbox, Motor, Pump | key selling points | Competitive Price |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 350 kg/h | power (kw) | 338 |
| weight (t) | 32 | dimension(l*w*h) | 9*4.5*5.2m |
| Screw L/D Ratio | 30 | screw diameter (mm) | 90 mm |
| screw heating power(kw) | 80 kW | extruder motor power(kw) | 135 kW |
| mold platen size(width)(mm) | 1600 mm | mold platen size(height)(mm) | 1500 mm |
| air pressure(mpa) | 0.8 MPa | air comsumption(m³/min) | 1 m³/min |
| die head heating power(kw) | 77 kW | Product name | Automatic Blowing Molding Machine |
| Blow Moulding Type | Extrusion Blow Moulding | After-sales Service Provided | Installation Training |
| Station | Single Sation | Production | septic tank |
| Advantages | High output | Certification | ISO9001 CE |
| Parison Control | USA MOOG | Material | HDPE PE |
| After Warranty Service | Engineers available to service machinery overseas |
