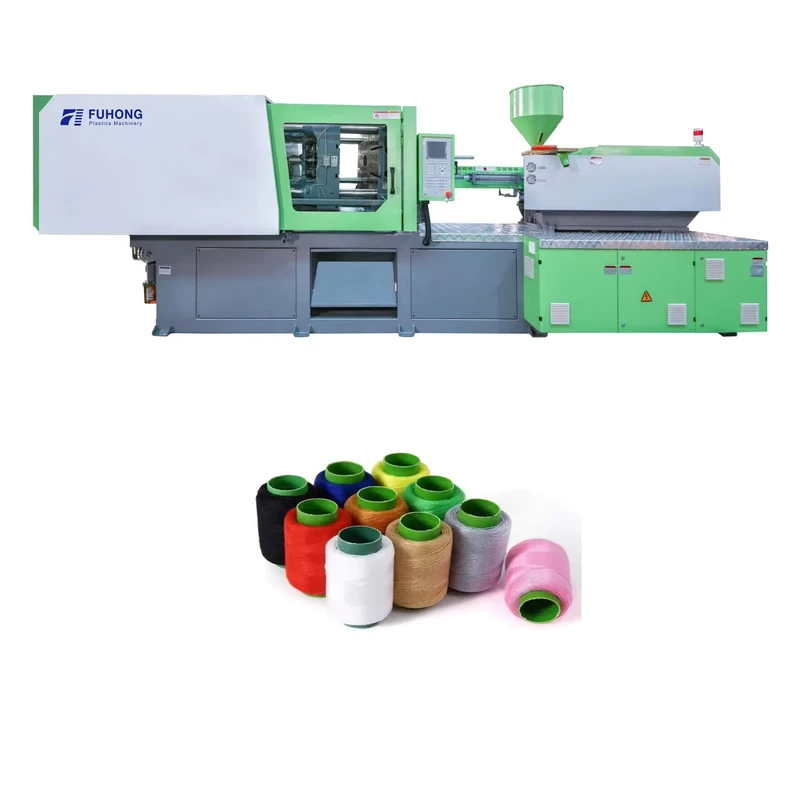

Plastic Yarn Winding Machine Coil Injection Molding Machine
Plastic Yarn Winding Machine Coil Injection Molding Machine
| machine type | Hydraulic | distance between tie bars | 520mm*470mm |
| plastic processed | PP, PC, PET, PVC, FRPP/PVC, HDPE, HDPE/PP, PE/PP, ABS/PP | style | Horizontal |
| key selling points | Energy Saving, Competitive Price | ejector number | 5 |
| core components | Bearing, Motor, Pump, Gear, Engine | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 170 |
| injection weight (g) | 382 | injection rate (g/s) | 170 |
| weight (kg) | 5000 | power (kw) | 12.4 |
| mold height(mm) | 200 - 550 | ejector stroke(mm) | 135 |
| ejector force(kn) | 62 | theoretical shot volume(cm³) | 420 |
| screw speed (rpm) | 0 - 180 | screw diameter (mm) | 50 |
| Screw L/D Ratio | 21 | open stroke(mm) | 460 |
| Plastic Type | Thermoplastic | Automatic | Yes |
| Product name | FHG180 | Screw Diameter | 45mm-52mm |
| Injection pressure | 146mpa-195mpa | Space between tie-bars | 520mm*470mm |
| Mould thickness | 200mm-550mm | Injection Speed | 128-172g/s |
| Pump Pressure | 16Mpa | Heating Power | 12.4KW |
