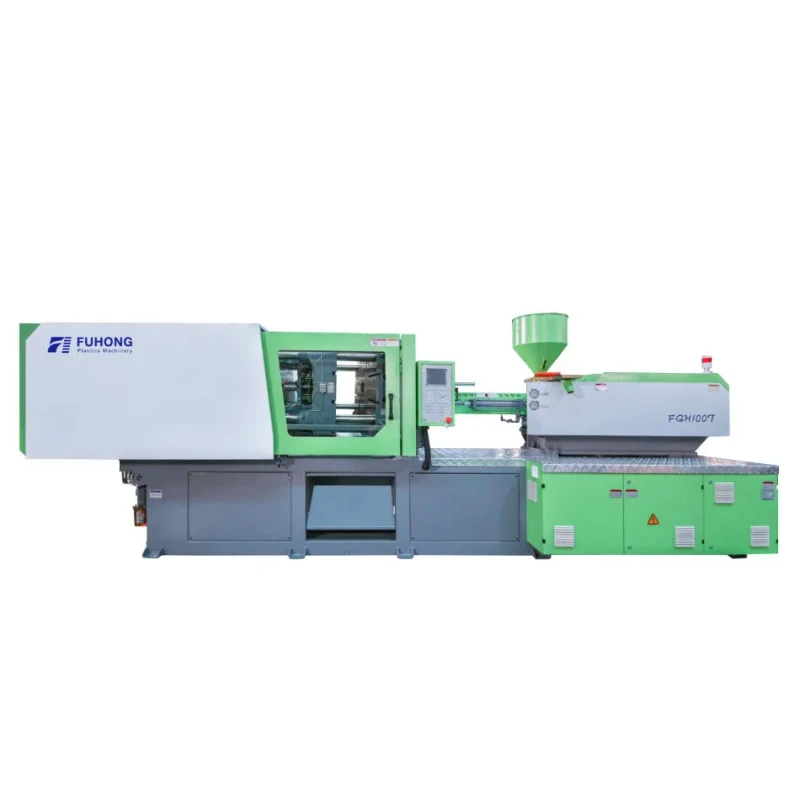

Professional 100 g Full Automatic Injection Mini Molding machine
Professional 100 g Full Automatic Injection Mini Molding machine
| machine type | Hydraulic | distance between tie bars | 355x315 mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, Polystyrene, PE, LDPE, PE/PP, Polylactic Acid | style | Horizontal |
| key selling points | high quality competitive price | ejector number | 5 |
| core components | Pump, Gear, PLC, Engine, Gearbox | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 78 |
| injection weight (g) | 173 | injection rate (g/s) | 78 |
| weight (kg) | 2510 | power (kw) | 9 |
| mold height(mm) | 150 - 340 mm | ejector stroke(mm) | 70 |
| ejector force(kn) | 27 | theoretical shot volume(cm³) | 190 |
| screw speed (rpm) | 0 - 200 rpm | screw diameter (mm) | 38 |
| Screw L/D Ratio | 21.5 | open stroke(mm) | 254 |
| Plastic Type | Thermoplastic | Automatic | Yes |
| Screw Diameter | 35mm-38mm | Mould thickness | 150mm-340mm |
| Ejector stroke | 70mm | Ejector force | 27kn |
| Heating power | 6.9kw | Machine dimension(L*W*H) | 3.81m*1.3m*1.55m |
| Machine weight | 2.51ton | Opening Stroke | 254mm |
