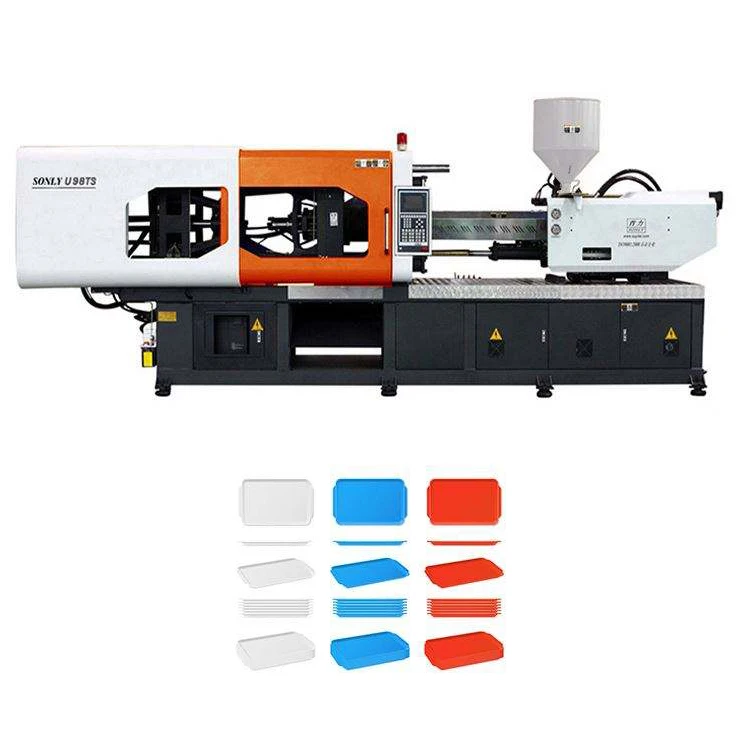

Professional 100 gm Full Automatic Injection Mini Molding Plastic Mold Machine for Turkey
Professional 100 gm Full Automatic Injection Mini Molding Plastic Mold Machine for Turkey
| machine type | Hydraulic | plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PP |
| style | Horizontal | key selling points | Competitive Price |
| ejector number | 4+1 | core components | Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox |
| machinery test report | Provided | video outgoing-inspection | Not Available |
| plasticizing capacity(g/s) | 14.7 | injection weight (g) | 146 |
| injection rate (g/s) | 79.6 | weight (kg) | 2800 |
| power (kw) | 11 | mold height(mm) | 120 - 360 mm |
| ejector stroke(mm) | 100 | ejector force(kn) | 38 |
| theoretical shot volume(cm³) | 160 | screw speed (rpm) | 0 - 210 |
| screw diameter (mm) | 35 | Screw L/D Ratio | 22 |
| open stroke(mm) | 325 | BOUNDARY DIMENSION(L*W*H) | 4.1*1.11*1.8 m |
| Marketing Type | New Product 2024 |
