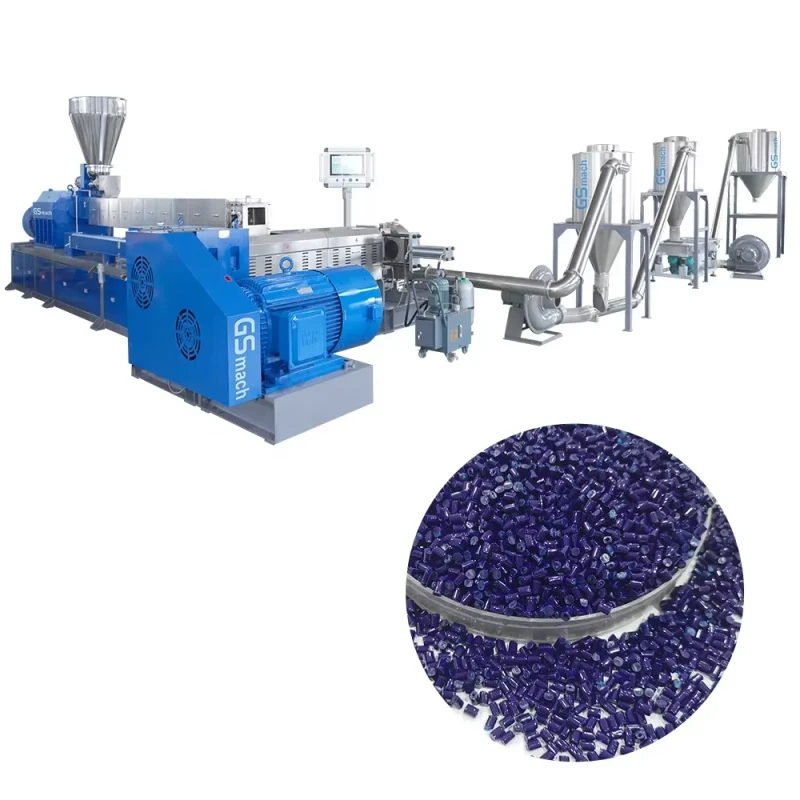

PVC Two Stage Twin Screw Extruder for Wire & Pelletizing PLC Controlled High Safety 600-800KG/H Capacity
PVC Two Stage Twin Screw Extruder for Wire & Pelletizing PLC Controlled High Safety 600-800KG/H Capacity
| application | Wire, Pipe, Granules, Sheet, Pelletizing | plastic processed | PVC |
| extruder type | twin screw | screw diameter (mm) | 75 |
| voltage | 380V 50/60HZ 3P | Screw L/D Ratio | 36:1 |
| Screw Material | 38CrMoALA | key selling points | High Safety Level |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox, Screw | Screw Design | two stage |
| Screw Speed (rpm) | 500 | Weight (KG) | 14000 |
| dimension(l*w*h) | 28*1.2*3 | power (kw) | 132 |
| Name | PVC Cable Extrusion Production Line | Keywords | PVC Cable Two Stage Hot Cutting Granulation Production Line |
| Raw material | pvc | Processing Type | Extruding Equipment |
| Machine type | Two Stage Hot Cutting Extrusion Line | After Warranty Service | Spare Parts |
| Capacity | 600-800KG/H | Screw type | Two stage |
| L/D | 36:1 |
