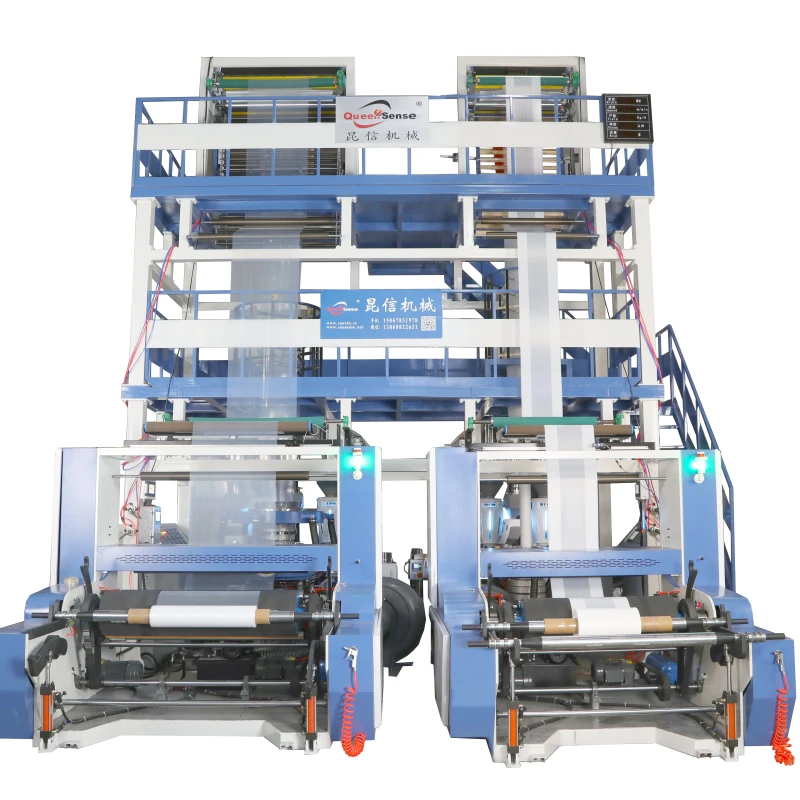

QS ABA1100 Integrated Combination Double Layer Co extrusion LDPE HDPE High Speed Plastic Film Blowing Machine
QS ABA1100 Integrated Combination Double Layer Co extrusion LDPE HDPE High Speed Plastic Film Blowing Machine
| plastic processed | HDPE, LDPE, LLDPE | number of layers | Two-layer |
| output (kg/h) | 150 | voltage | 380 V |
| core components | Engine, Bearing, Gearbox, Motor | Raw Material | Polyethylene (Pe) |
| machinery test report | Not Available | video outgoing-inspection | Provided |
| key selling points | Easy To Operate, Multifunctional, High-Accuracy, Flexible Manufacturing, Automatic | weight (kg) | 5000 |
| screw diameter (mm) | 55 | die size(mm) | 100 - 250 |
| dimension(l*w*h) | 5.6*5.8*6.5m | Main motor | 22kw*2 |
| Average power-consume | 40kw/h | Air ring | 780mm |
| Air blower | 7.5kw | Roller width | 1300mm |
| Traction motor | 1.5kw | Winding motor | 1.5kw |
| Winding speed | 5-50m/min |
