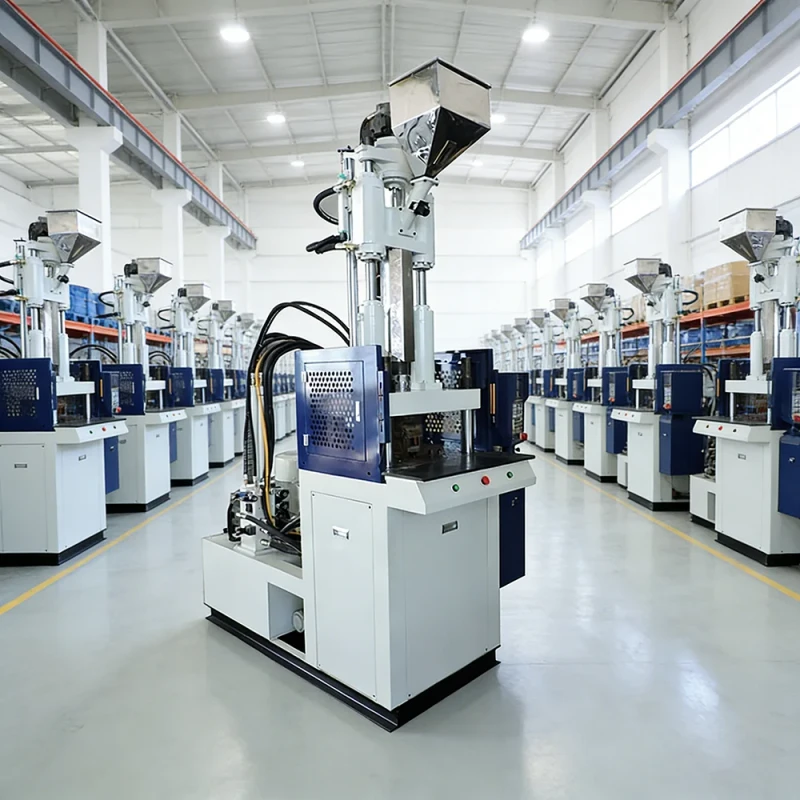

Quicker Hydraulic Vertical Injection Molding Machine for Insert Molding
Quicker Hydraulic Vertical Injection Molding Machine for Insert Molding
| machine type | Hydraulic | distance between tie bars | 600x360 mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR | style | VERTICAL |
| ejector number | 1 | core components | PLC, Motor |
| machinery test report | Not Available | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 50 | injection weight (g) | 183 |
| injection rate (g/s) | 150 | weight (kg) | 4000 |
| power (kw) | 11 | mold height(mm) | 250 - 650 |
| ejector stroke(mm) | 75 | ejector force(kn) | 22 |
| theoretical shot volume(cm³) | 325 | screw speed (rpm) | 100 - 160 rpm |
| screw diameter (mm) | 48 | open stroke(mm) | 400 |
| Product name | Plastic Injection Moulding Machine | Condition | New |
| Type | Tube Head Injection | Showroom Location | None |
| Hopper volume/L | 20 | Clamping force | 85 |
| Mold open force | 8 | Warranty of core components | 1 Year |
| Applicable Industries | Other |
