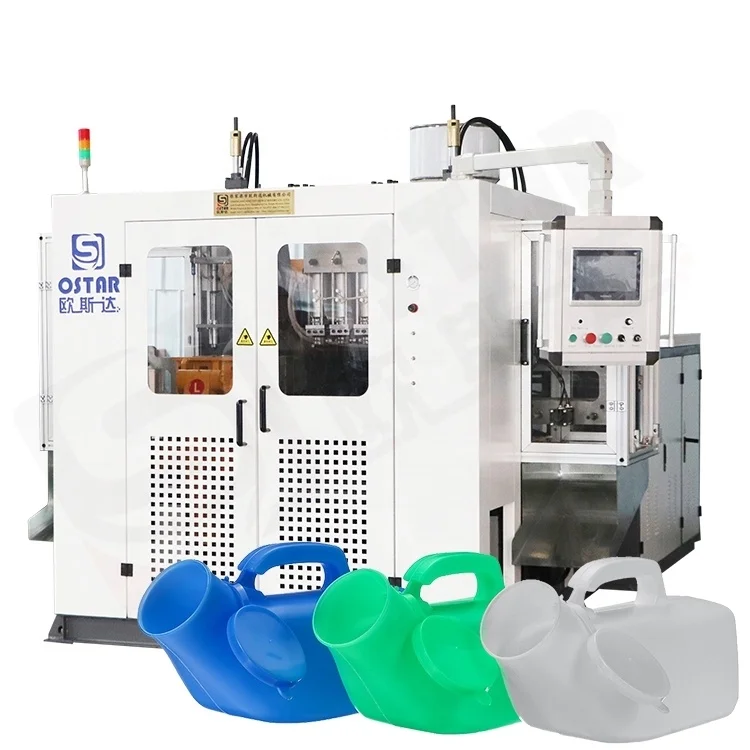

Reusable Hospital Man Male Female Urine Pot Urinal Collector Container Bottle Making Blowing Moulding Blow Molding Machine
Reusable Hospital Man Male Female Urine Pot Urinal Collector Container Bottle Making Blowing Moulding Blow Molding Machine
| plastic processed | PP, PE, PE/PP, HDPE/PP | Clamping Force (kN) | 68 |
| voltage | 380V | automation | Automatic |
| No. of Screw Heating Zone | 3 | plc brand | Mitsubishi |
| core components | PLC, Engine, Motor, Pump | key selling points | Competitive Price |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 80 kg/h | power (kw) | 7.5 |
| weight (t) | 5.5 | dimension(l*w*h) | 3.2X1.7X2.5M |
| Screw L/D Ratio | 25 | screw diameter (mm) | 70 mm |
| screw heating power(kw) | 7.2 kW | extruder motor power(kw) | 22 kW |
| mold platen size(width)(mm) | 360 mm | mold platen size(height)(mm) | 400 mm |
| air pressure(mpa) | 0.6 MPa | air comsumption(m³/min) | 0.5 m³/min |
| die head heating power(kw) | 5.7 kW | Keywords | urine collector blow molding machine |
| High Pressure Valve&Cylinder | Taiwan AirTac | Hydraulic valve | Japan Yuken |
| Motor | Siemens | Blow Moulding Type | Extrusion Blow Moulding |
| Suitable bottle | 50-5000ml Bottle | material application | PP PE PVC ABS... |
| energy saving | servo motor system | After-sales Service Provided | Field installation, commissioning and training |
| After Warranty Service | Field maintenance and repair service |
