Professional Manufacturer of Plastic Processing Machinery

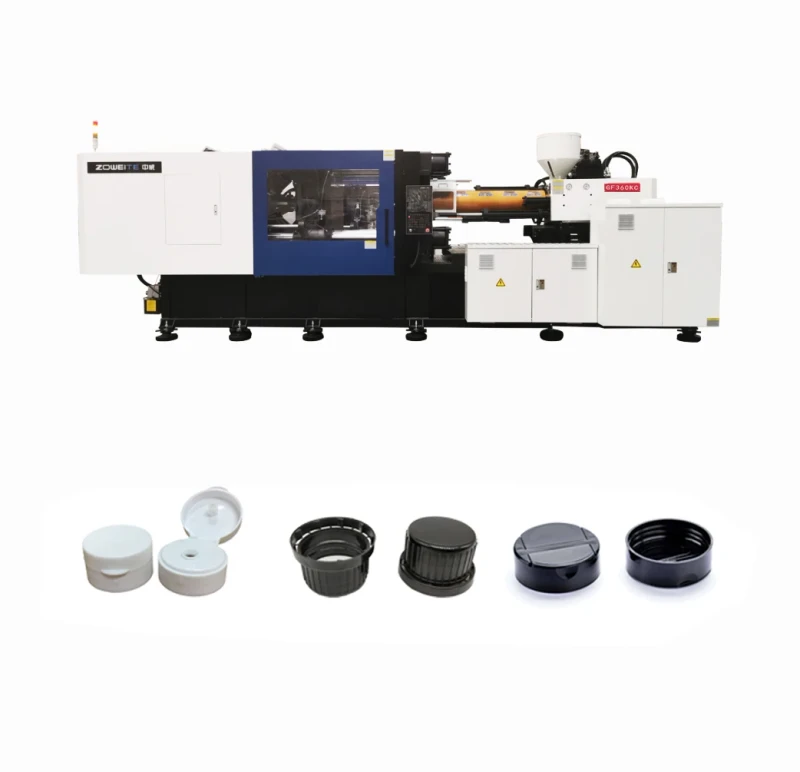

Screw Preform Bottle Plastic Cap Machine Injection Molding Machine
Screw Preform Bottle Plastic Cap Machine Injection Molding Machine
| machine type | Hydraulic | distance between tie bars | 635*635mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Stable performance | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| injection weight (g) | 541 g | injection rate (g/s) | 1300 g/s |
| weight (kg) | 8000 kg | power (kw) | 93 kW |
| mold height(mm) | 220 - 600 mm | ejector stroke(mm) | 100 mm |
| ejector force(kn) | 67 kN | theoretical shot volume(cm³) | 707 cm³ |
| screw speed (rpm) | 0 - 310 rpm | screw diameter (mm) | 55 mm |
| Screw L/D Ratio | 24 | open stroke(mm) | 650 mm |
| Product name | Injection Molding Machine | Model | GF360KC |
| Function | Plastic parts production | Application | Inserting Plastic Products |
| Motor | Servo Energy Saving | Machiner Dimensions(mm) | 6500*1900*2100 |
| Advantage | Energy saving | stable performance | Short cycle time |
