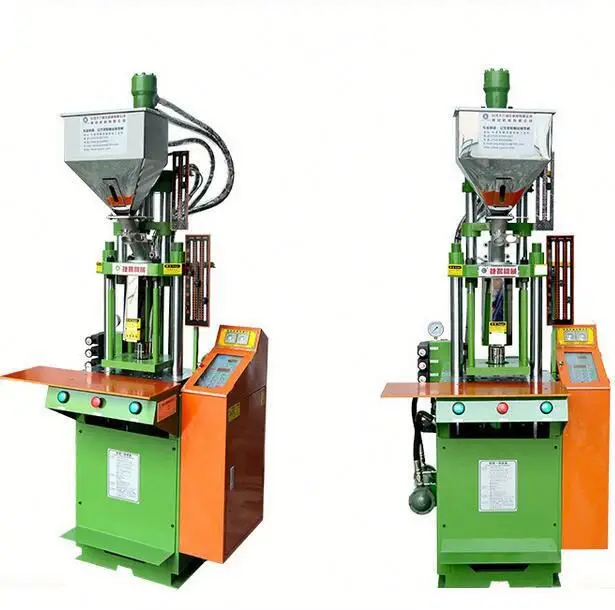

Semi Auto Vertical Plastic Injection Molding Machine 20T
Semi Auto Vertical Plastic Injection Molding Machine 20T
| machine type | Hydraulic | distance between tie bars | 315*315mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, HDPE, MLLDPE, Polystyrene, PE, HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Multifunctional | ejector number | 27 |
| core components | Bearing, Motor, Pump | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 80 |
| injection weight (g) | 111 g | injection rate (g/s) | 82 g/s |
| weight (kg) | 12000 kg | power (kw) | 17.25 kW |
| mold height(mm) | 150 - 400 mm | ejector stroke(mm) | 100 mm |
| ejector force(kn) | 33 kN | theoretical shot volume(cm³) | 181 cm³ |
| screw speed (rpm) | 1 - 220 rpm | screw diameter (mm) | 70 mm |
| Screw L/D Ratio | 21.5 | open stroke(mm) | 340 mm |
| Automatic | Yes | Usage: | Electric Parts |
| Clamping Force: | 200KN | injection pressure | 147Mpa |
| Pump Motor Power | 5.5KW | Oil Tank Capacity | 210L |
| Product name | blood lancet 28g Molding Machine | Clamping Force (kN) | 200 kN |
| Certification | CE ISO9001 | Marketing Type | New Product 2020 |
