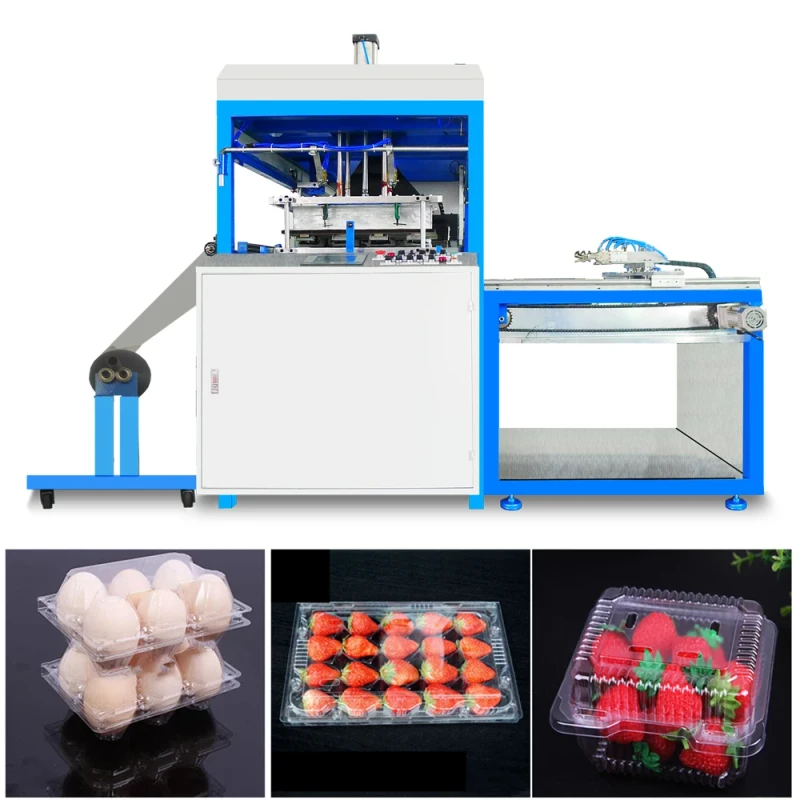

Semi automatic Thermoforming Machine for Blister Clamshell Packaging
Semi automatic Thermoforming Machine for Blister Clamshell Packaging
| plastic type | PVC, PS, PP, PET | product type | Fast Food Box |
| production speed(cycles/min) | 4-10 | power(kw) | 18 |
| voltage | 380V 50HZ 3phases | core components | PLC, Engine, Bearing |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | Easy To Operate | dimension(l*w*h) | L200*W200*H180cm |
| forming width (mm) | 560 | forming length (mm) | 610 |
| weight (t) | 0.6 | max.forming height(mm) | 100 |
| air pressure(mpa) | 0.8 | sheet thickness(mm) | 0.1 - 2 mm |
| heating power (kw) | 15 | air comsumption(l/min) | 0.8 |
| water comsumption(l/min) | 0.8 | Weight | 600kg |
| Machine type | Thermoforming machine | Machine Name | Vacuum forming machine |
| Material type | PP,PS,PET,PVC,ABS,ACRYLIC,PE | Material Thickness | 0.2-2.0mm |
| Material | Roll/sheet | Usage | Platic Blister Plastic Tray Forming |
| Color: | Customized | Application | blister forming machine |
| Power(W) | 18KW |
