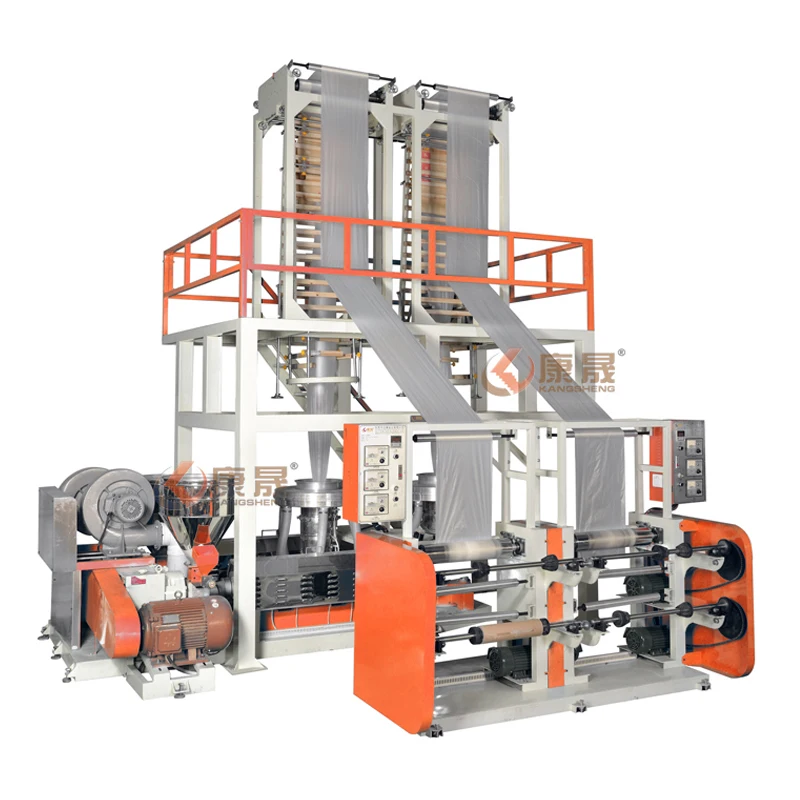

Single Screw Two Double Die Extruder for T Shirt Bag Plastic Film Blowing Machine
Single Screw Two Double Die Extruder for T Shirt Bag Plastic Film Blowing Machine
| plastic processed | HDPE, PLA, HDPE/PP, LDPE, LLDPE | number of layers | Two-layer |
| output (kg/h) | 35 - 50 | voltage | 380V/3PH/50HZ |
| core components | PLC, Engine, Bearing, Gearbox, Motor, Gear | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | High Safety Level |
| weight (kg) | 5000 | screw diameter (mm) | 55 |
| die size(mm) | 120 - 240 mm | dimension(l*w*h) | 4500mm*2000mm*4200mm(L*W*H) |
| Name | 2 in 1 film blowing machine | Keywords | Single screw + 2 die heads |
| Film type | Plastic or Biodegradable material | Machine type | Automatic |
| Screw die ratio | 1:30 | Barrel cooling fan power | 180w *3 pcs |
| Max output | 25 kg/h*2=50 kg/h | Screw diameter | 55 mm * 2 |
| Main inverter | 22 KW | Main motor | 22 KW |
