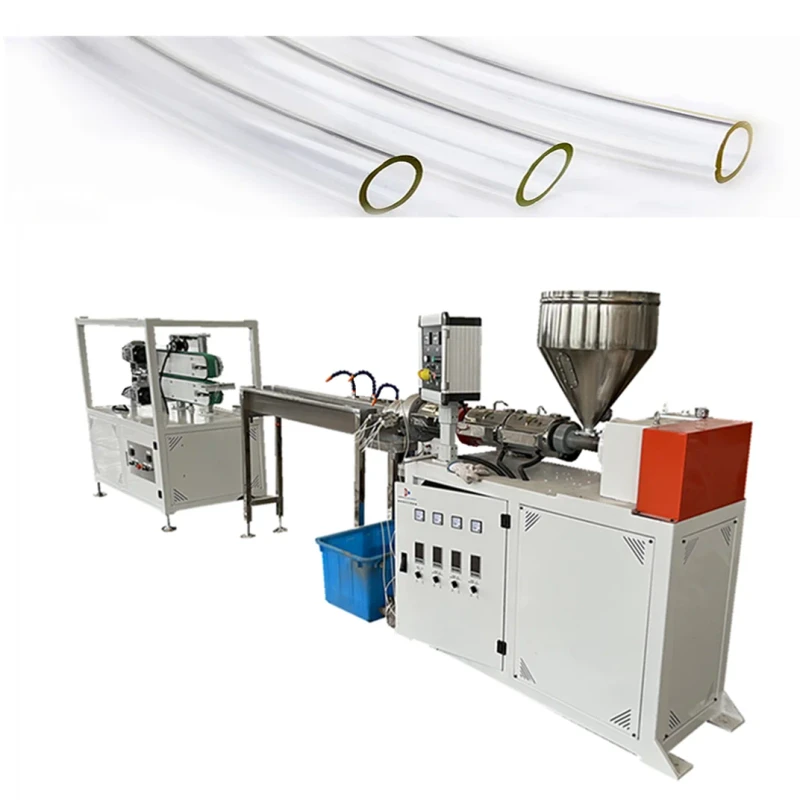

SJ30 Extruder Small Size PVC Plastic Transparent Medical Soft Tube Hose Machine Production Extrusion Line
SJ30 Extruder Small Size PVC Plastic Transparent Medical Soft Tube Hose Machine Production Extrusion Line
| application | Pipe, hose | plastic processed | PVC, TPU PU |
| screw diameter (mm) | 30 | voltage | 380V |
| Screw L/D Ratio | 28:1 | Screw Material | 38CrMoALA |
| key selling points | Automatic | machinery test report | Provided |
| video outgoing-inspection | Provided | core components | Bearing, Motor, Pump, Gear, PLC, Other, Pressure Vessel, Engine, Gearbox, Screw |
| Screw Design | Single-screw | Screw Speed (rpm) | 90 rpm |
| dimension(l*w*h) | 8M*1M*1.5M | power (kw) | 10 |
| Raw material | PVC pellets | Product name | pvc hose |
| pipe diameter | 2mm-16mm | capacity | 5~20KG/H |
| manufacture speed | 5m/min | complete line length | 8m |
| main motor power | 7.5kw | pipe thickness | 0.5mm~2mm |
| motor brand | siemens | inverter | ABB |
