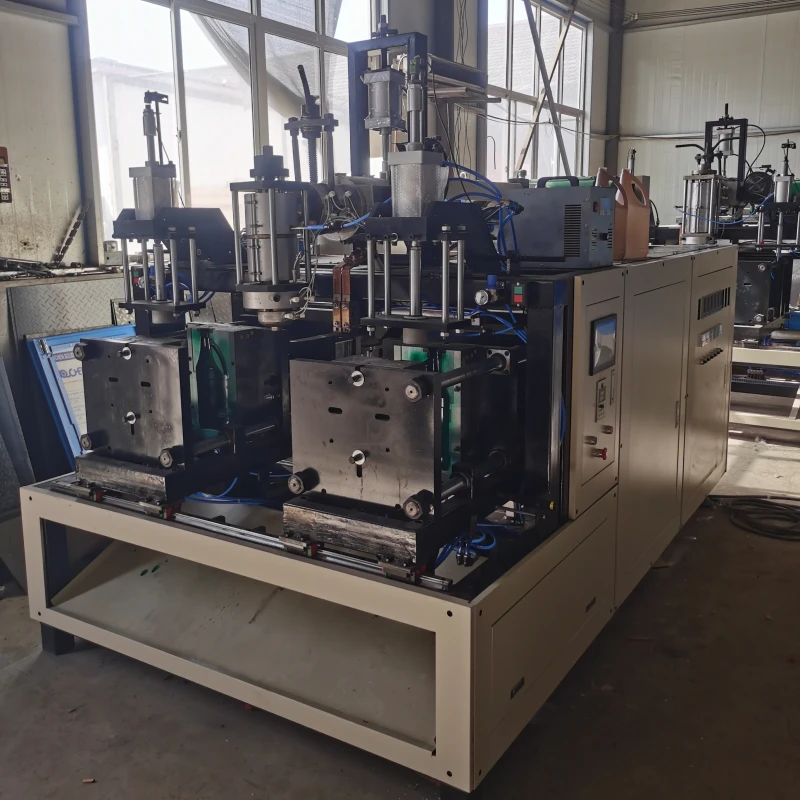

Small HDPE Bottle Plastic Blow Molding Machine Extrusion Blow Mould Machine
Small HDPE Bottle Plastic Blow Molding Machine Extrusion Blow Mould Machine
| plastic processed | PP, HDPE, PE, PE/PP, HDPE/PP | Clamping Force (kN) | 10 |
| voltage | 380V | automation | Automatic |
| core components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | key selling points | Easy To Operate |
| machinery test report | Provided | video outgoing-inspection | Provided |
| output (kg/h) | 40 | power (kw) | 33 |
| weight (t) | 3 | dimension(l*w*h) | 3100*1400*1600 |
| screw diameter (mm) | 65 | screw heating power(kw) | 11 |
| extruder motor power(kw) | 11 | mold platen size(width)(mm) | 300 |
| mold platen size(height)(mm) | 400 | air pressure(mpa) | 0.6 |
| air comsumption(m³/min) | 0.4 | die head heating power(kw) | 0.75 |
| type | horizontal | suitable for making | PE, PP bottle |
