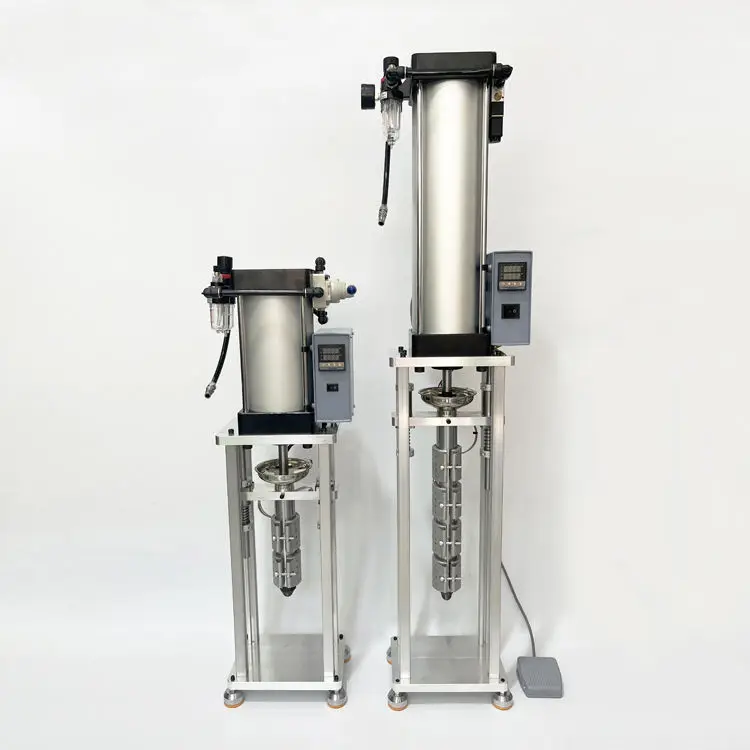

Small Household 20g 30g 50g Vertical Injection Molding Machine Desktop Polymer Plastic ABS Injection Molding Machine
Small Household 20g 30g 50g Vertical Injection Molding Machine Desktop Polymer Plastic ABS Injection Molding Machine
| machine type | Hybrid, Hydraulic, Mechanical | distance between tie bars | 110*110 |
| plastic processed | PP, PC, ABS, PET, PVC, PE, PE/PP | style | VERTICAL |
| key selling points | High Productivity | ejector number | Other |
| core components | PLC, Pump | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 20 |
| injection weight (g) | 20 | injection rate (g/s) | 20 |
| weight (kg) | 28 | power (kw) | 1 |
| mold height(mm) | 2 - 20 | ejector stroke(mm) | 30 |
| ejector force(kn) | 10 | theoretical shot volume(cm³) | 40 |
| screw speed (rpm) | 1500 - 2500 | screw diameter (mm) | 16 |
| open stroke(mm) | 30 | Allowable maximum air pressure | 0.8mpa |
| Suitable for maximum mold size | 140 * 200 * 135mm | Heating temperature | 0-350 ℃ |
| Maximum extrusion pressure | 800kg | Maximum glue injection | 50g |
| Temperature control | PID temperature control | Product name | Injection Molding Machine |
| Open Stroke(mm) | 20 mm | Condition | New |
