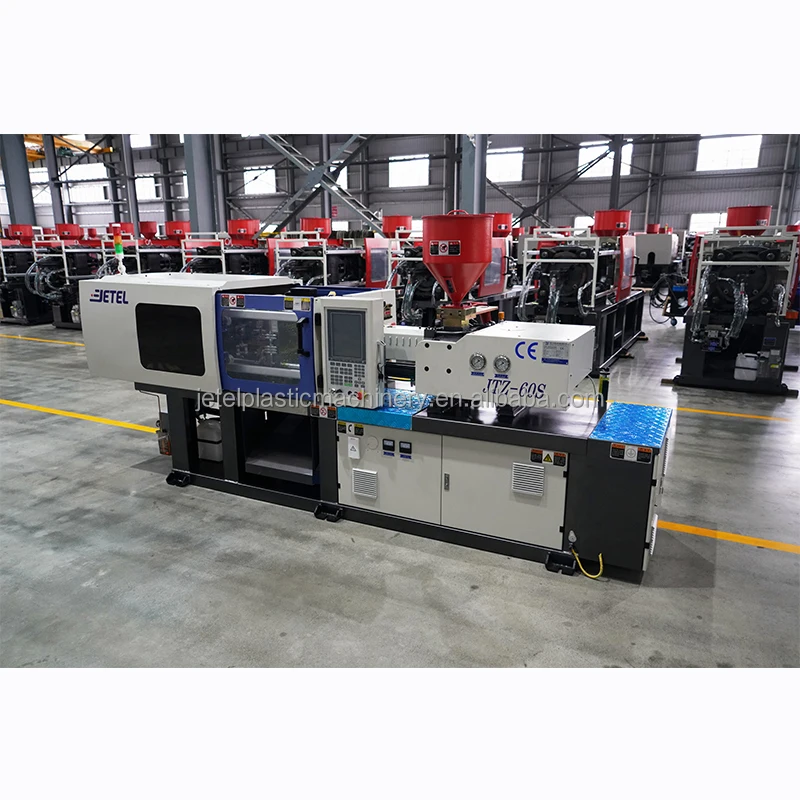

Small Mini 60ton Plastic Injection Molding Machine JTZ60S
Small Mini 60ton Plastic Injection Molding Machine JTZ60S
| machine type | Hydraulic | distance between tie bars | 290*270mm |
| plastic processed | PP, Silicon, PC, ABS, PPR, EVA, HDPE, EPS, PA, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid | style | Horizontal |
| ejector number | 3 | core components | Bearing, Motor, Pump, Gear, Pressure Vessel, PLC, Screw, Gearbox, Engine |
| machinery test report | Not Available | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 10 | injection weight (g) | 65 |
| injection rate (g/s) | 52 | weight (kg) | 1500 |
| power (kw) | 5.5 | ejector stroke(mm) | 64 |
| ejector force(kn) | 31 | theoretical shot volume(cm³) | 72 |
| screw speed (rpm) | 0 - 220 | screw diameter (mm) | 30 |
| open stroke(mm) | 255 |
