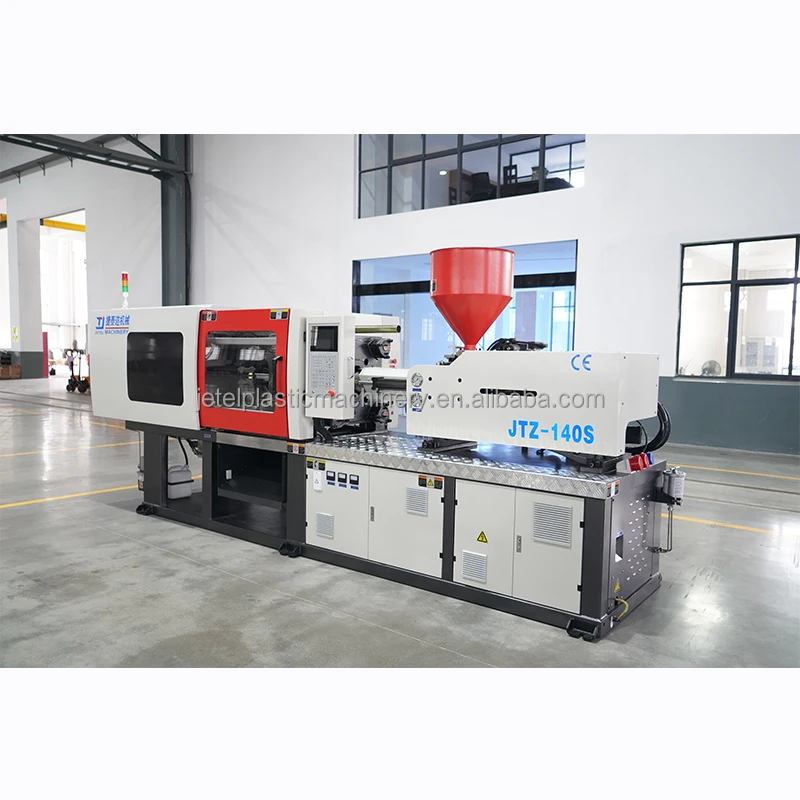

Small Mini Micro Manual Plastic Injection Machine Controller Automatic and Easy Operate Injection Molding Machine
Small Mini Micro Manual Plastic Injection Machine Controller Automatic and Easy Operate Injection Molding Machine
| machine type | Hydraulic | distance between tie bars | 420x420 mm |
| plastic processed | PP, Silicon, PC, ABS, FRPP/PVC, PPR, EVA, HDPE, PA, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid | style | Horizontal |
| ejector number | 5 | core components | Bearing, Motor, Pump, Gear, Pressure Vessel, PLC, Engine, Gearbox, Screw |
| machinery test report | Not Available | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 14 | injection weight (g) | 252 |
| injection rate (g/s) | 115 | weight (kg) | 4000 |
| power (kw) | 15 | mold height(mm) | 150 - 450 |
| ejector stroke(mm) | 120 | ejector force(kn) | 50 |
| theoretical shot volume(cm³) | 277 | screw speed (rpm) | 0 - 221 |
| screw diameter (mm) | 42 | open stroke(mm) | 380 |
