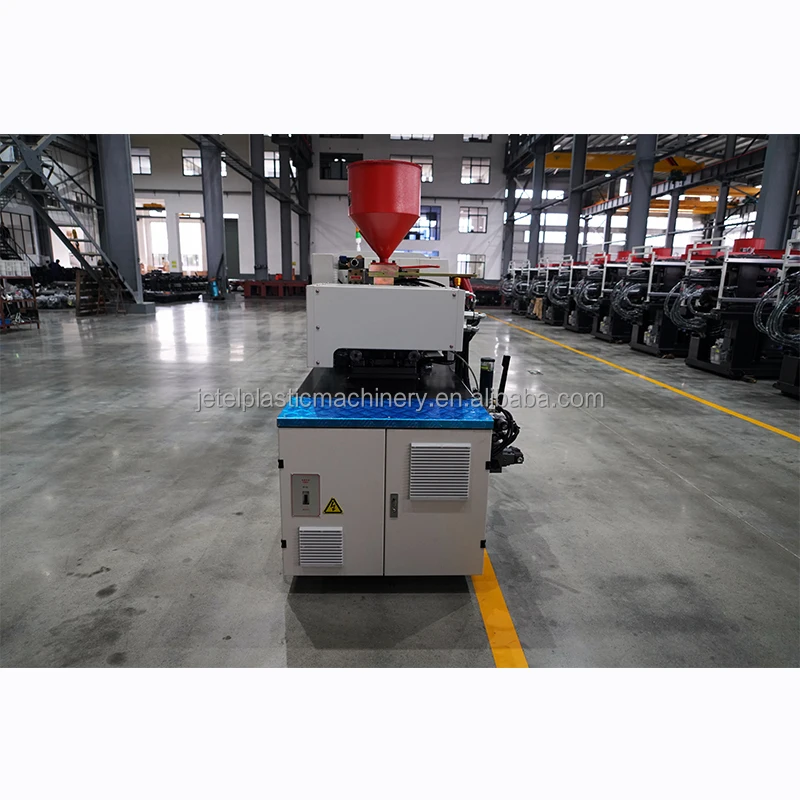

Small Plastic Injection Molding Machine 100ton Injection Machine Mini Injection Molding Machine JTZ110S
Small Plastic Injection Molding Machine 100ton Injection Machine Mini Injection Molding Machine JTZ110S
| machine type | Hydraulic | distance between tie bars | 370x370 mm |
| plastic processed | PP, Silicon, PC, ABS, PPR, EVA, HDPE, EPS, PA, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PP, Polylactic Acid | style | Horizontal |
| ejector number | 3 | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw |
| machinery test report | Not Available | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 10 | injection weight (g) | 148 |
| injection rate (g/s) | 89 | weight (kg) | 3400 |
| power (kw) | 15 | mold height(mm) | 150 - 380 |
| ejector stroke(mm) | 100 | ejector force(kn) | 38 |
| theoretical shot volume(cm³) | 164 | screw speed (rpm) | 0 - 201 |
| screw diameter (mm) | 35 | open stroke(mm) | 350 |
