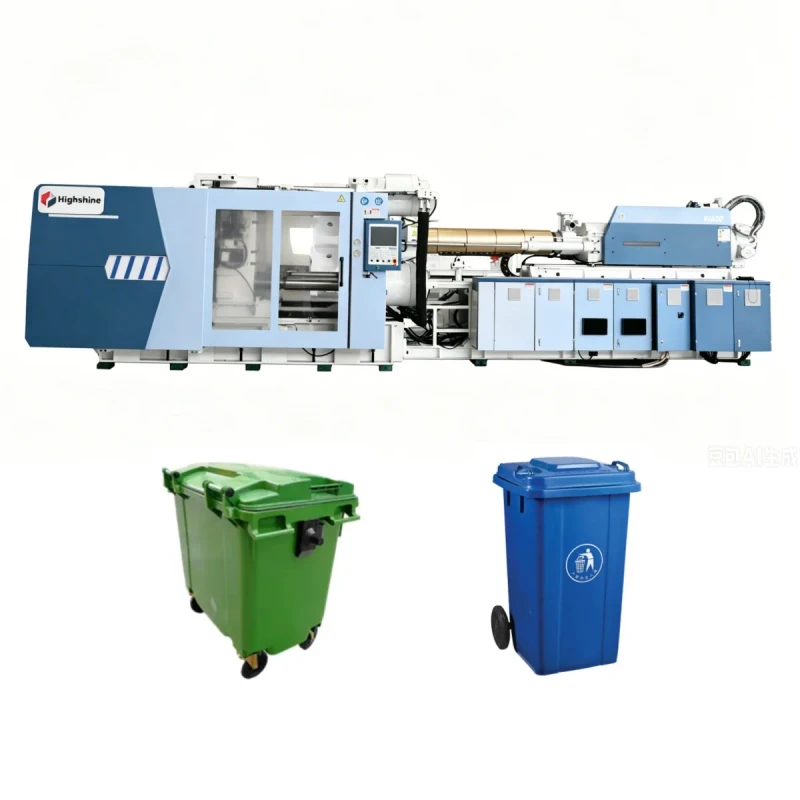

Smart Servo Two Platen Injection Molding Machine for Large Plastic Products
Smart Servo Two Platen Injection Molding Machine for Large Plastic Products
| machine type | Hydraulic | distance between tie bars | 1050x910 mm |
| plastic processed | PC, PP, ABS, PET, PVC | style | Horizontal |
| key selling points | High-Accuracy | ejector number | 32 |
| core components | PLC, Pump, Motor, Gear | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 265 |
| injection weight (g) | 2903 | injection rate (g/s) | 645 |
| weight (kg) | 23000 | power (kw) | 75 |
| mold height(mm) | 400 - 950 | ejector stroke(mm) | 250 |
| ejector force(kn) | 110 | theoretical shot volume(cm³) | 2861 |
| screw speed (rpm) | 0 - 130 | screw diameter (mm) | 90 |
| Screw L/D Ratio | 22 | open stroke(mm) | 1750 |
| Machiner Dimensions(mm) | 8.6x2.8x2.3 m | Color | Blue |
| PLC | Techmation | Servo Driver | Delta |
| Servo motor | Yunsheng | Direction Valve | Yuken |
| Used for | Plastic Product Processing | After Warranty Service | Online Support Spare Parts |
| Market Type | 2025 New Series |
