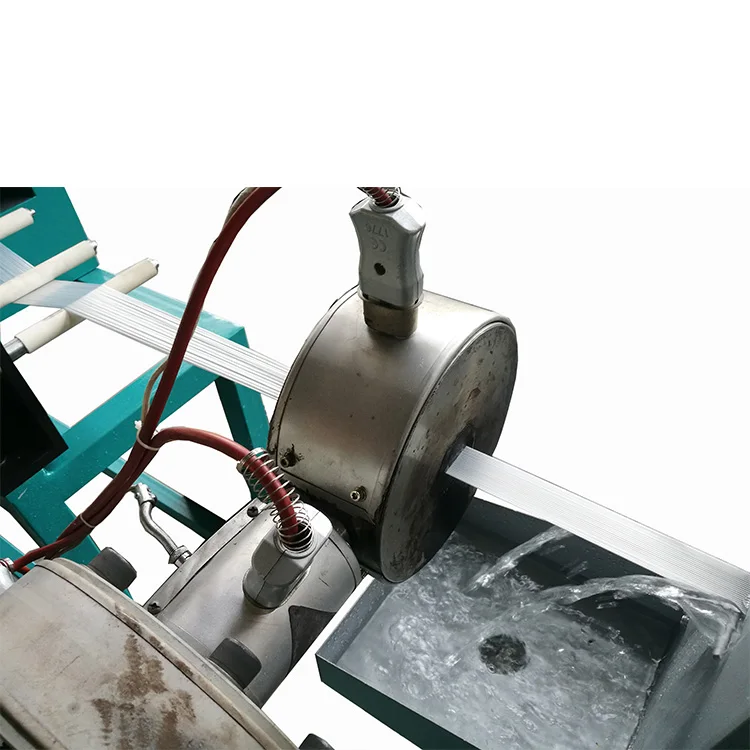

SOFT FIBER POLYESTER COMPOSITE STRAP MACHINE, POLYESTER YARN REINFORCED BELT EXTRUDER, GEOGRID PRODUCTION LINE
SOFT FIBER POLYESTER COMPOSITE STRAP MACHINE, POLYESTER YARN REINFORCED BELT EXTRUDER, GEOGRID PRODUCTION LINE
| application | Composite strap | plastic processed | PE, PP, EVA, PET |
| extruder type | single screw | screw diameter (mm) | 60 |
| voltage | 380V | Screw L/D Ratio | 30:1 |
| Screw Material | 38CrMoALA | key selling points | High Productivity |
| machinery test report | Provided | video outgoing-inspection | Provided |
| core components | Motor | Screw Design | Single-screw |
| Screw Speed (rpm) | 90 | Weight (KG) | 10000 |
| dimension(l*w*h) | 20-25m*5m*3.5m | power (kw) | 90 |
| Quantity of strap | 1-2 | Width of strap | 9-36mm |
| Thickness of strap | 0.7-1.6 mm | Line speed | 120m/min |
| Capacity | 50-100kg/hr | Motor power | 45KW |
| Material of water tank | 304# stainless steel | PP material | Virgin or recycled PP pellets |
| PET yarn size | 500D/1000D/2000D/3000D/6000D/9000D |
