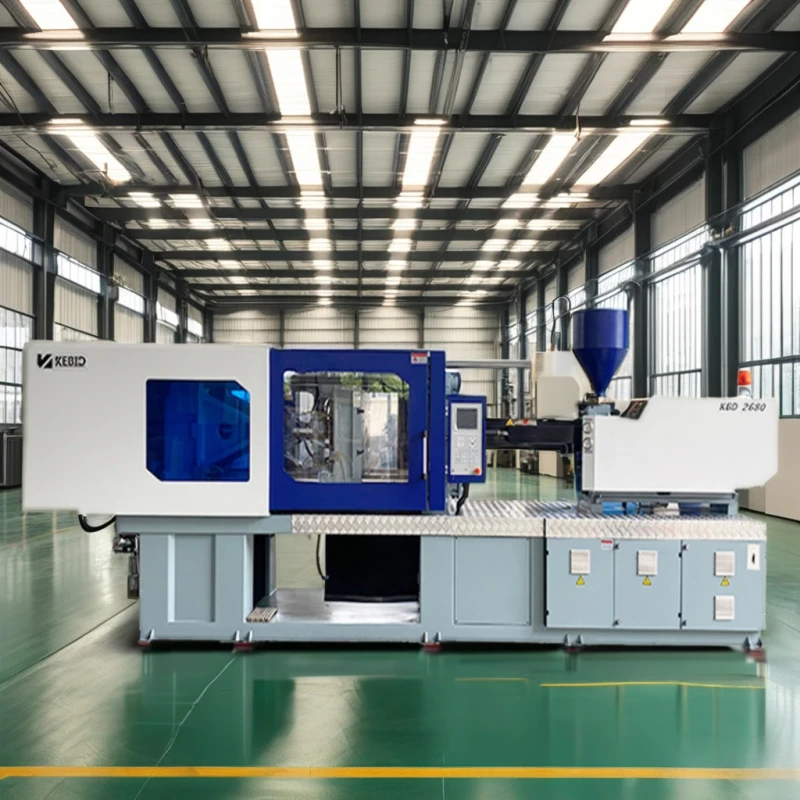

Super Small 90Ton Injection Molding Machine for Plastic Mini Products Making Machine Plastic Injection Molds Machine Price
Super Small 90Ton Injection Molding Machine for Plastic Mini Products Making Machine Plastic Injection Molds Machine Price
| machine type | Hydraulic | distance between tie bars | 360*360 |
| style | Horizontal | key selling points | Energy Saving |
| ejector number | 5 | core components | Motor, Pump, PLC, Other, Screw |
| machinery test report | Not Available | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 8.4 | injection weight (g) | 140 |
| injection rate (g/s) | 80 | weight (kg) | 2900 |
| power (kw) | 18 | mold height(mm) | 150 - 380 mm |
| ejector stroke(mm) | 80 | ejector force(kn) | 30 |
| theoretical shot volume(cm³) | 153 | screw speed (rpm) | 0 - 220 rpm |
| screw diameter (mm) | 35 | open stroke(mm) | 320 |
| Plastic Type | Thermoplastic | Automatic | YES |
| After-sales Service Provided | Video technical support | suitable material | polyethylene |
| suitable material shot name | pe | machine purpose | making plastic parts with pe material or other material |
| clamping force | we have machine from 50ton to 900ton | Certification | CE ISO9001 |
| Energy saving | Servo Energy Saving System |
