Professional Manufacturer of Plastic Processing Machinery

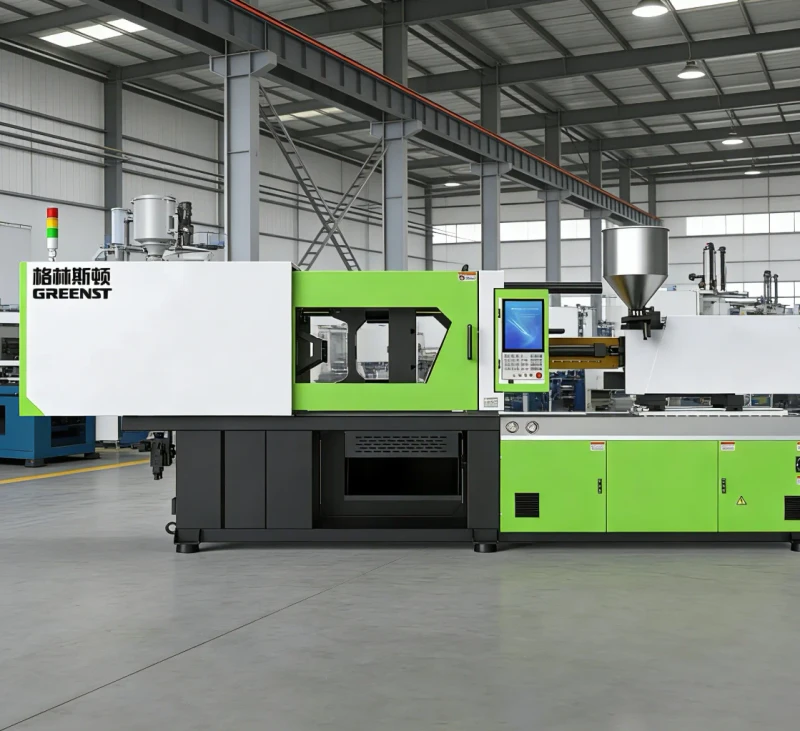

SV-50 Horizontal Plastic Injection Molding Equipment With Video Technical Support Auxiliary Equipment
SV-50 Horizontal Plastic Injection Molding Equipment With Video Technical Support Auxiliary Equipment
| machine type | Hydraulic | distance between tie bars | 280x280 mm |
| plastic processed | PP, PC, PET, PVC | style | Horizontal |
| key selling points | Automatic, Competitive Price, High Safety Level, High-Accuracy, Energy Saving, Eco-Friendly | ejector number | 1 |
| core components | Motor, Pump | machinery test report | Provided |
| video outgoing-inspection | Provided | Raw Material | Polyethylene (Pe), Polypropylene (PP), Polyvinyl Chloride (PVC), Polyester (PET) |
| plasticizing capacity(g/s) | 8.8 | injection weight (g) | 70 |
| injection rate (g/s) | 74.1 | weight (kg) | 2200 |
| power (kw) | 5.5 | mold height(mm) | 120 - 340 |
| ejector stroke(mm) | 70 | ejector force(kn) | 25 |
| theoretical shot volume(cm³) | 78 | screw speed (rpm) | 0 - 200 |
| screw diameter (mm) | 32 | Screw L/D Ratio | 18.3 |
| open stroke(mm) | 270 | Application | Inserting Plastic Products |
| Function | Plastic Parts Production | Keyword | Plastic Machinery Equipment |
| After-sales Service Provided | Video Technical Support | Name | China Inejction Molding Machine |
| Usage | Plastic Product Molding | Structure | Horizontal Injection Molding Machine |
| Used for | Plasic Products | Type | Hot China Products |
| Available Auxiliary Equipment | dehumidifying dryers, auto loaders, water chillers and other auxiliary |
