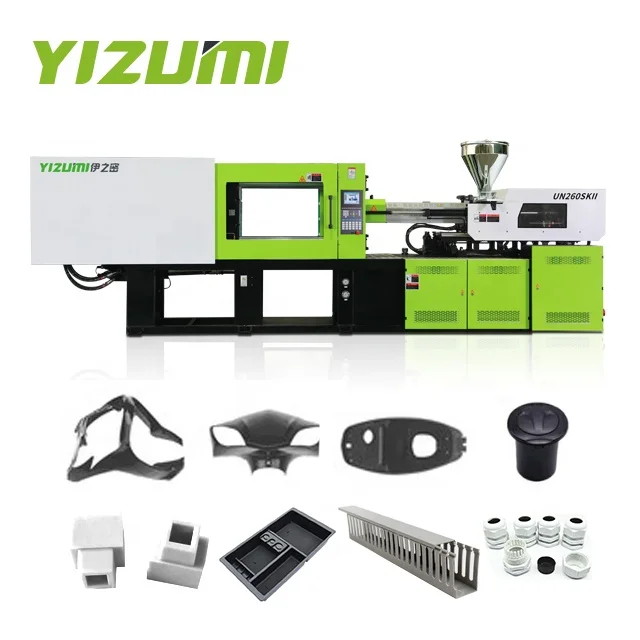

UN260SKII PVC Pipe Injection Moulding Machine
UN260SKII PVC Pipe Injection Moulding Machine
| machine type | Hydraulic | distance between tie bars | 570x570 mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, PE, HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | cost-effective | ejector number | 5 |
| core components | Bearing, Motor, Pump, PLC, Screw, Other | machinery test report | Provided |
| video outgoing-inspection | Provided | injection weight (g) | 689.3 g |
| injection rate (g/s) | 208.1 g/s | weight (kg) | 8000 kg |
| power (kw) | 40.6 kW | mold height(mm) | 195 - 610 mm |
| ejector stroke(mm) | 160 mm | ejector force(kn) | 77 kN |
| theoretical shot volume(cm³) | 749.3 cm³ | screw speed (rpm) | 1 - 164 rpm |
| screw diameter (mm) | 60 mm | Screw L/D Ratio | 20 |
| open stroke(mm) | 530 mm | Injection pressure | 169.4Mpa |
| Marketing Type | Hot Product 2019 |
