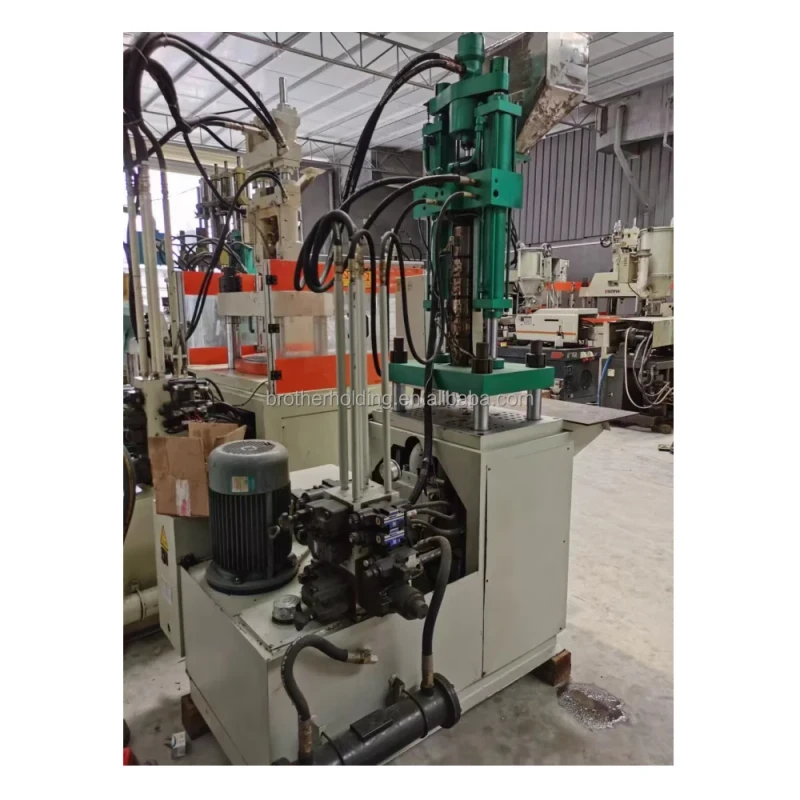

Used Injection Molding Machine 25 35 45 Ton Small Vertical Injection Molding Machine
Used Injection Molding Machine 25 35 45 Ton Small Vertical Injection Molding Machine
| machine type | Hydraulic | distance between tie bars | 470x470 mm |
| plastic processed | PP, PC, PVC, FRPP/PVC, PE, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Easy To Operate | core components | Motor |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 21.6 g/s | injection weight (g) | 246 g |
| injection rate (g/s) | 148 g/s | weight (kg) | 5300 kg |
| power (kw) | 9.75 kW | mold height(mm) | 180 - 520 mm |
| ejector stroke(mm) | 140 mm | ejector force(kn) | 33 kN |
| theoretical shot volume(cm³) | 395 cm³ | screw speed (rpm) | 0 - 205 rpm |
| screw diameter (mm) | 50 mm | open stroke(mm) | 430 mm |
| Product name | Plastic Injection Moulding Machine | Condition | Used |
| Model | VE-35 | Clamping Force (kN) | 35 |
| Warranty of core components | 1 Year | After-sales Service Provided | Video technical support, Online support |
| Marketing Type | Ordinary Product |
