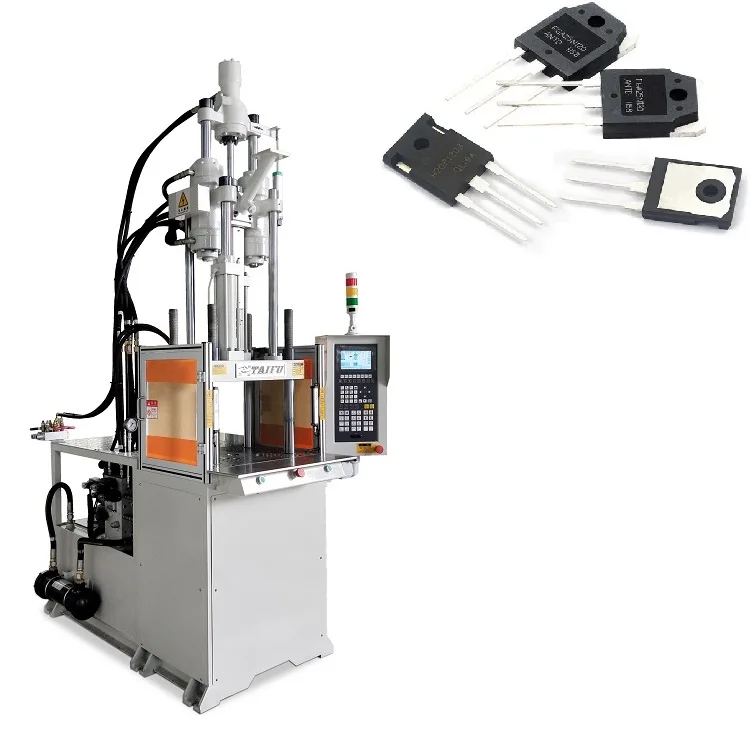

Vertical 35Ton Hydraulic Plastic Injection Molding Machine with PVC PP PC Materials Screw Energy Saving Electronic Injector

Vertical 35Ton Hydraulic Plastic Injection Molding Machine with PVC PP PC Materials Screw Energy Saving Electronic Injector
  • Vertical 35Ton Hydraulic Plastic Injection Molding Machine with PVC PP PC Materials Screw Energy Saving Electronic Injector

    • Vertical 35Ton Hydraulic Plastic Injection Molding Machine with PVC PP PC Materials Screw Energy Saving Electronic Injector

    Request a Quote
    machine typeHydraulicdistance between tie bars410*220
    plastic processedPP, PC, PVCstyleVERTICAL
    key selling pointsEnergy Savingejector number1
    core componentsBearing, Motor, Pump, Gear, Screw, Engine, Pressure Vesselmachinery test reportProvided
    video outgoing-inspectionProvidedplasticizing capacity(g/s)105
    injection weight (g)105injection rate (g/s)94
    weight (kg)1300power (kw)5.5
    mold height(mm)150 - 410 mmejector stroke(mm)40
    ejector force(kn)17.2theoretical shot volume(cm³)113
    screw speed (rpm)10 - 300 rpmscrew diameter (mm)32
    open stroke(mm)200
