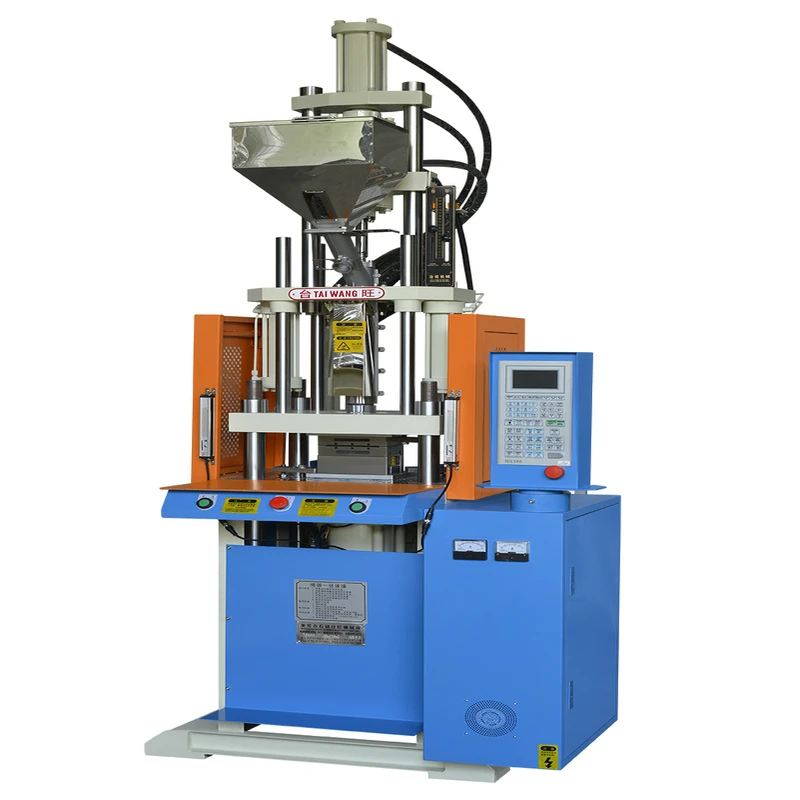

Vertical Injection Molding Machine Standard
Vertical Injection Molding Machine Standard
| machine type | Hydraulic, Electric | distance between tie bars | 400x150 mm |
| style | VERTICAL | ejector number | 1-3/ome |
| core components | Motor, Pump, Gear, PLC, Pressure Vessel, Engine | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 42 |
| injection weight (g) | 58 | injection rate (g/s) | 42 |
| weight (kg) | 900 | power (kw) | 3.75 |
| mold height(mm) | 0 - 145 | ejector stroke(mm) | 28 |
| ejector force(kn) | 0.7 | theoretical shot volume(cm³) | 63 |
| screw speed (rpm) | 0 - 150 | screw diameter (mm) | 26 |
| Screw L/D Ratio | 18 | open stroke(mm) | 215 |
| Clamping Force | 245KN | Max Shot Volume | 84cm³ |
| Screw Diameter | 26 | Mold Size Range | 540*290mm |
| Energy Type | hydraulic | Processable Materials | PP/PC/ABS/PET/PA |
| Molding Cycle | 18-20s | Machine Weight | 0.9T |
| Key Component Brand | Tang Wang | After-sales Service | 1.5-year warranty+lifetime technical support |
