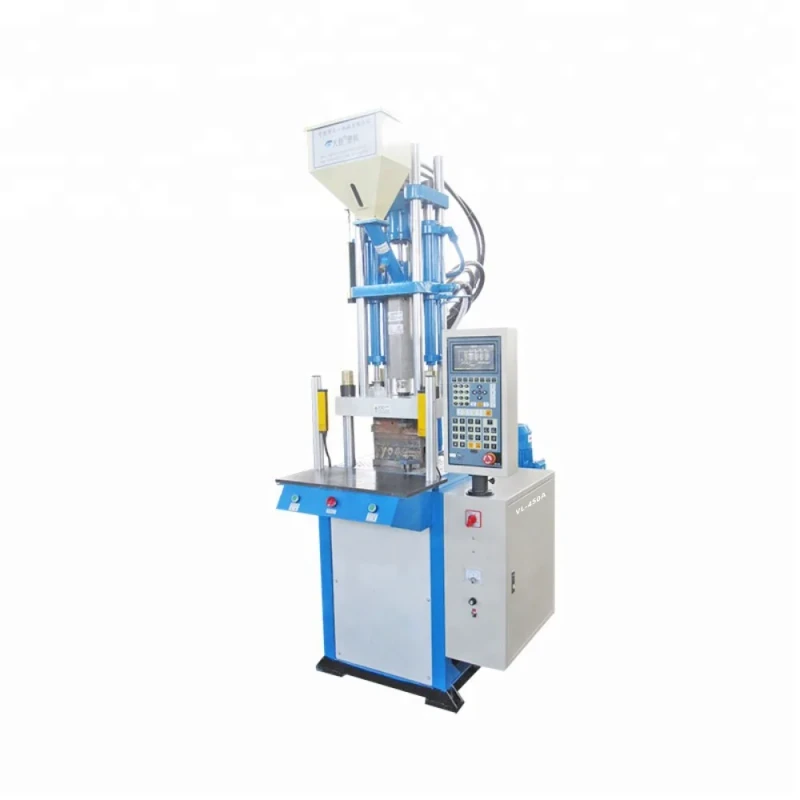

Vertical Injection Molding Machine VL-450A

Vertical Injection Molding Machine VL-450A
  • Vertical Injection Molding Machine VL-450A

    • Vertical Injection Molding Machine VL-450A

    Request a Quote
    styleVERTICALclamping force40T
    Plastic TypeThermoplasticAutomaticYes
    After-sales Service ProvidedEngineers available to service machinery overseasScrew Diameter28/32/36mm
    Platen Size580*430mmSpace between Tie Bars405*255mm
    Min. Mould Height150/190/210/250mmMax. Mould Height350/390/410/450mm
    System Pressure140kg/cm2Pump Motor Power5.5kw
    Heater Power4.75kwMachine Weight1.1 tons
    Machine Dimensions1.7*0.9*2.5mOpening Stroke200mm
    Injection Rate41cm3/sec 53cm3/sec 68cm3/secInjection Weight60/87/109g
    CertificationCE ISO9001 Patent CertificatePower10.25kw
