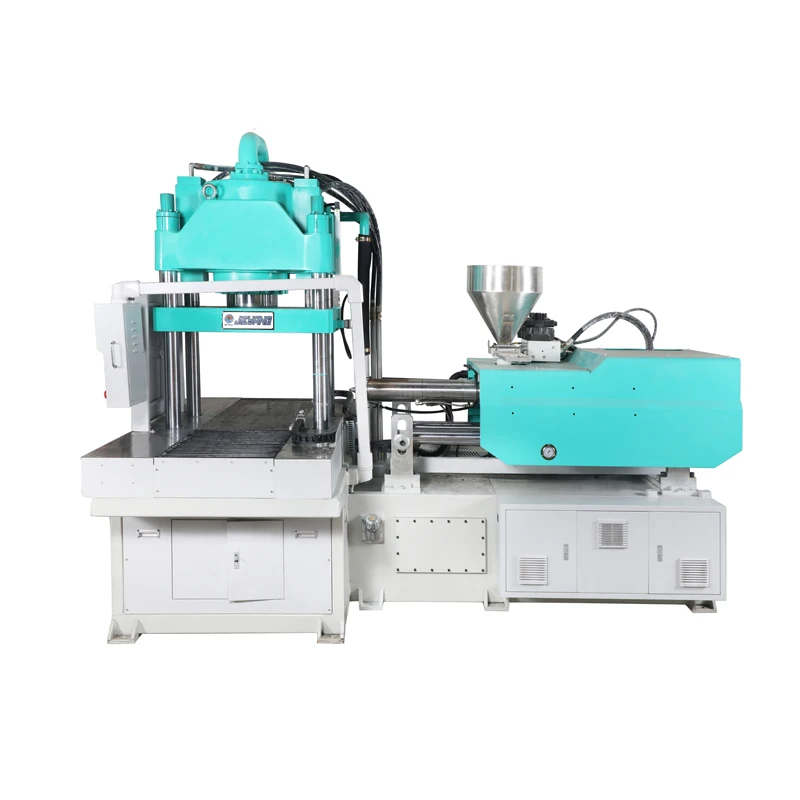

Vertical Machine Horizontal Injection Molding Machine for Door Handle Product
Vertical Machine Horizontal Injection Molding Machine for Door Handle Product
| machine type | Hydraulic | distance between tie bars | 760*380mm |
| style | VERTICAL | key selling points | Competitive Price |
| ejector number | 2 | core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw, Other |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 207 | injection weight (g) | 236 |
| injection rate (g/s) | 207 | weight (kg) | 8000 |
| power (kw) | 15 | mold height(mm) | 250 - 300 mm |
| ejector stroke(mm) | 100 | ejector force(kn) | 56.8 |
| theoretical shot volume(cm³) | 254 | screw speed (rpm) | 0 - 240 rpm |
| screw diameter (mm) | 45 | open stroke(mm) | 350 |
| Plastic Type | Thermosetting | Product name | Kitchen Utensils Bakelite Handles Making Machine |
| Voltage | 380V/ 50Hz 3P+N+E (alterable) | Function | Bakelite Injection Molding |
| Machine dimension(L*W*H) | 3.4*2.0*2.9m | Used for | Kitchen Utensils Bakelite Handles Making |
| Color | Green | Platen SIze | 1200*615mm |
| Certification | CE TUV BUR |
