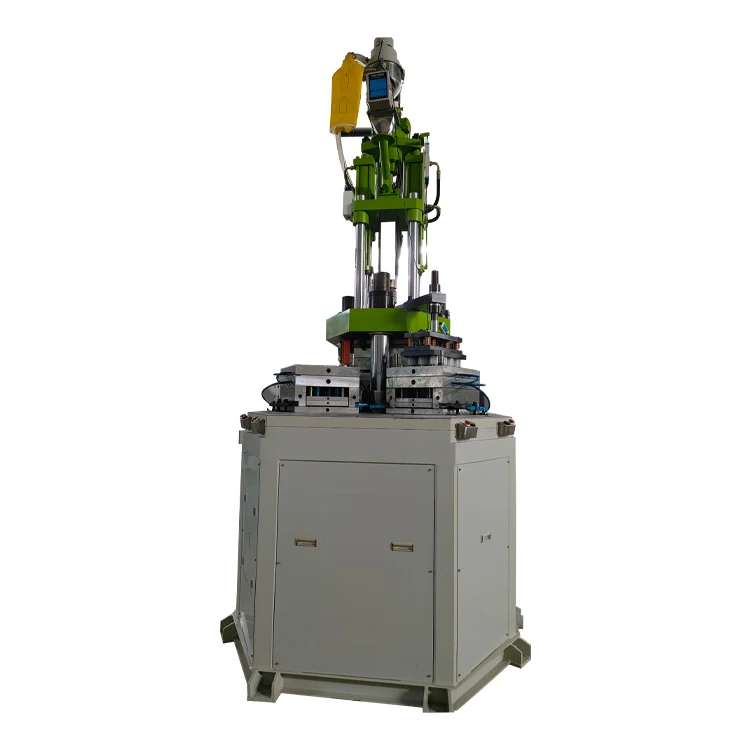

Vertical Mode locking Horizontal Plastic Injection Molding Machine
Vertical Mode locking Horizontal Plastic Injection Molding Machine
| machine type | Electric | distance between tie bars | 160mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, EPS, PA, PE, ABS/PP, PE/PP, Nylon | style | VERTICAL |
| key selling points | High Safety Level | ejector number | Other |
| core components | Motor | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 52 |
| injection weight (g) | 77 | injection rate (g/s) | 52 |
| weight (kg) | 1500 | power (kw) | 7.5 |
| ejector stroke(mm) | 35 | ejector force(kn) | 13 |
| theoretical shot volume(cm³) | 56 | screw speed (rpm) | 1 - 190 rpm |
| screw diameter (mm) | 20 | open stroke(mm) | 270 |
| Product Name | Vertical Mode-locking Horizontal Plastic Injection Molding Machine | Screw Diameter | 20 mm |
| Injection Pressure | 1715 | Theoretical Shot Volume | 31 |
| Max.injection Weight(PS) | 29 | Injection Rate | 20 cm³/sec |
| Screw Stroke | 100 mm | Max.Screw Speed | 0-155 rpm |
| Nozzle Contact Force | 2.0 | Nozzle Retraction Stroke | 133 |
