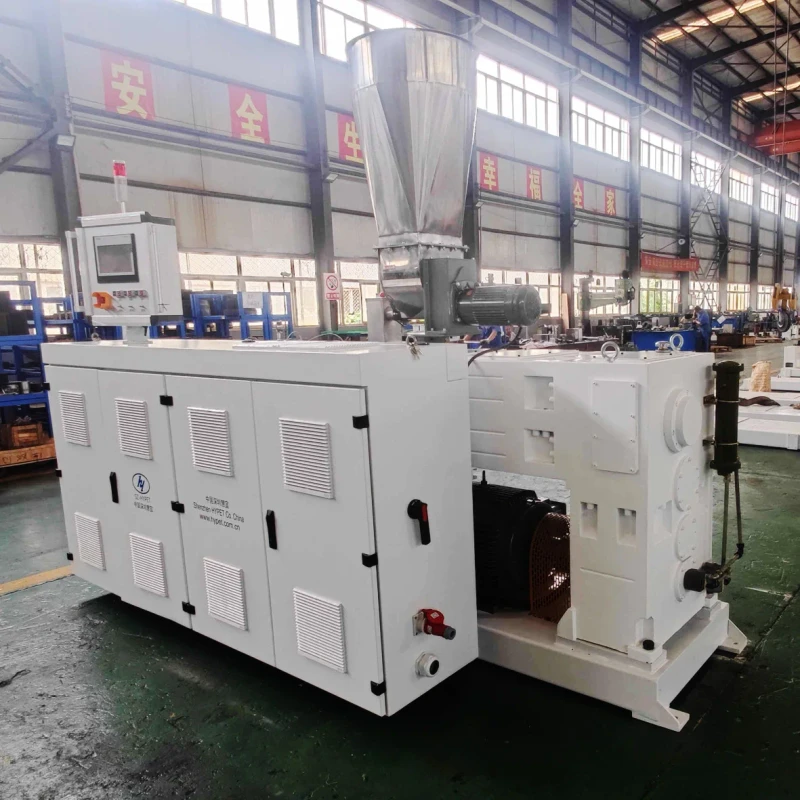

Vertical Style Gear Box High Torque ZS65/132 80/156 80/173 35/78 Twin Conic Double Screw Plastic Extruder for PVC Material

Vertical Style Gear Box High Torque ZS65/132 80/156 80/173 35/78 Twin Conic Double Screw Plastic Extruder for PVC Material
  • Vertical Style Gear Box High Torque ZS65/132 80/156 80/173 35/78 Twin Conic Double Screw Plastic Extruder for PVC Material

    • Vertical Style Gear Box High Torque ZS65/132 80/156 80/173 35/78 Twin Conic Double Screw Plastic Extruder for PVC Material

    Request a Quote
    applicationBar, Pipe, Granules, Sheet, Film, Profile, Filament, Pelletizingplastic processedPVC, WPC
    screw diameter (mm)65 mmvoltage380
    Screw L/D Ratio28:1Screw MaterialBi-metal
    key selling pointsHigh Productivitymachinery test reportNot Available
    video outgoing-inspectionProvidedcore componentsMotor, Gearbox, Screw
    Screw DesignDouble-screwScrew Speed (rpm)38
    Weight (KG)3000dimension(l*w*h)2200x1200x1400
    power (kw)30Feeder motor1.5kw
    colorwhite and blueMotor brandSiemens Baid
    Control systemPLCAfter-sales Service ProvidedField maintenance and repair service
    After Warranty ServiceVideo technical supportItemPlastic extruder
    Screw typeTwin conicalLD25:1
    Main motor power37kw
