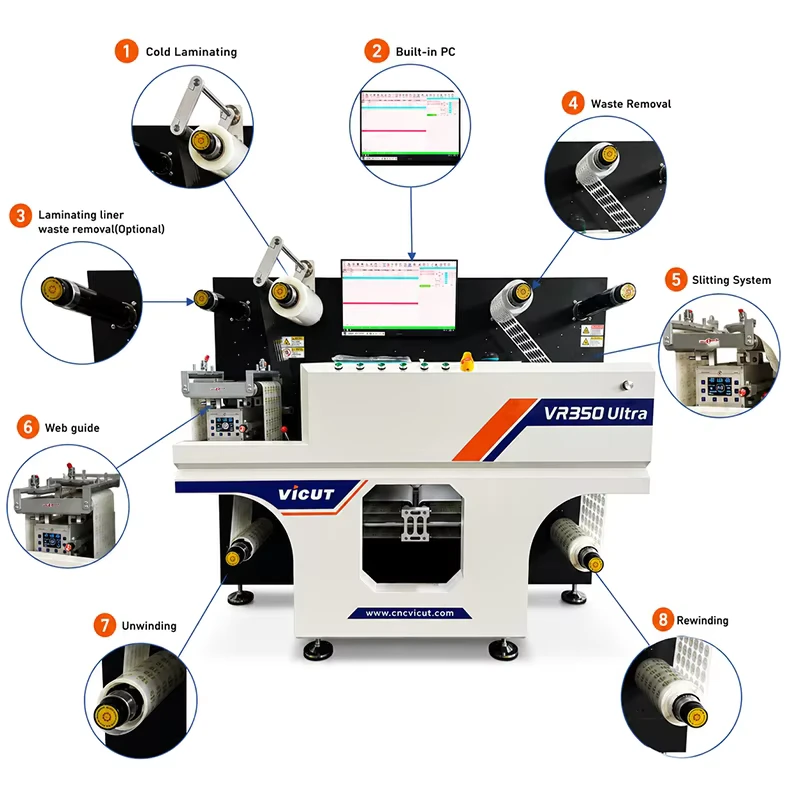

Vicut Roll to Roll 10 Meters Per Minute Digital Label Sticker Die Cutting Machine with Lamination and Slitting

Vicut Roll to Roll 10 Meters Per Minute Digital Label Sticker Die Cutting Machine with Lamination and Slitting
  • Vicut Roll to Roll 10 Meters Per Minute Digital Label Sticker Die Cutting Machine with Lamination and Slitting

    • Vicut Roll to Roll 10 Meters Per Minute Digital Label Sticker Die Cutting Machine with Lamination and Slitting

    Request a Quote
    typeDie-Cutting MachineWorking Width350 mm
    production capacity5 m/minvoltage220 V
    plc brandDeltacomputerizedYes
    machinery test reportProvidedvideo outgoing-inspectionProvided
    core componentsMotor, PLCkey selling pointsMultifunctional
    Weight (KG)960dimension(l*w*h)1800*1080*1460mm
    Max. Roll Width450mmCut Media Width150-350mm
    Max. Cutting Width340mmMax. Label Length600mm(stand); 1100mm(extended)
    Max. Die Cutting Speed10 m/min (cut 7x15 cm square label)No. of Cutting Heads6 pcs
    Slitting unit7 PCS(Standard ), up to 15PCSMaxi.laminating roll diam.300mm
    Max.matrix roll diam350mmMax rewinder roll diamUpper rewinder roller 350mm; down rewinder roller 450mm
