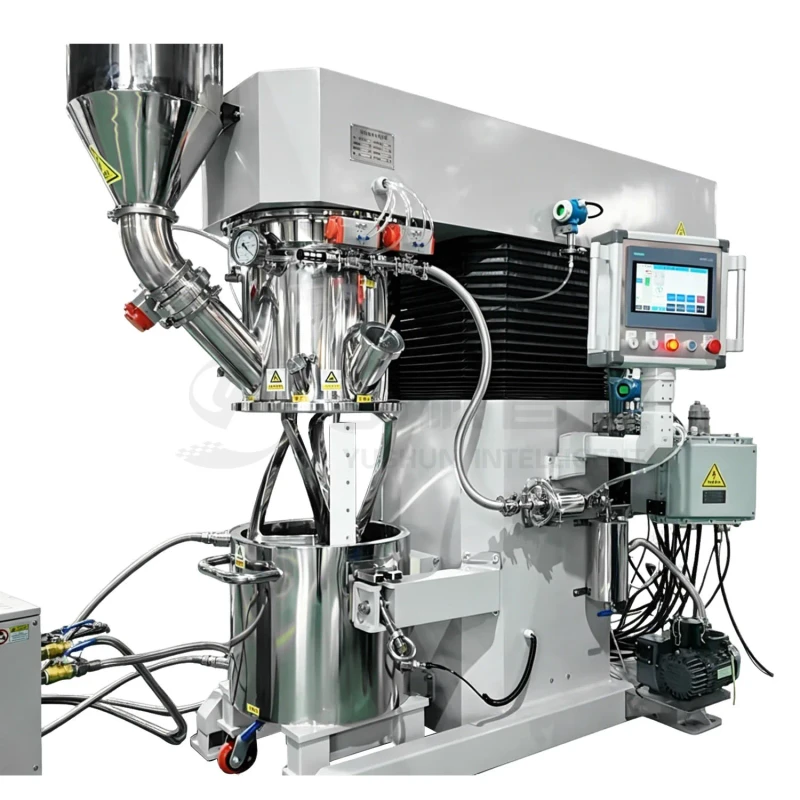

YuShun 50L High Viscosity Paste Processing Double Planetary Mixer with Stainless Steel Storage Tank
YuShun 50L High Viscosity Paste Processing Double Planetary Mixer with Stainless Steel Storage Tank
| material processed | Plastics, Chemicals, Battery Paste | Capacity | 50 L |
| mixer type | vacuum mixer | material | SUS304, SUS316 |
| product type | Adhesives / Lithium Battery Slurry / Putty | Configuration | Vertical |
| additional capabilities | Dispersing/Mixing/Vacuum/Heating/Cooling | voltage | 220-600V |
| Power (kW) | 7.5 KW | Motor Type | AC Motor |
| core components | Motor, Gear, Gearbox, Pump, PLC, Bearing, Engine | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | Energy conservation/multi-function/high efficient |
| weight (kg) | 1700 | range of spindle speed(r.p.m) | 0 - 36 r.p.m |
| dimension(l*w*h) | 1950*1200*2150 mm | Machine Type | Dispersing and Mixing |
| Production capacity | 50L ( Optional 2-3000L working volume) | Material viscosity | under 1,000,000 cps |
| Solid content | under 90% | Revolution Motor | 7.5KW |
| Tank size | 500*450 mm | Custom | Customizable explosion-proof |
| Mixing Paddles | Blade (Frame / Multi-layer / Twist) + High Speed Shaft + Scraper | Function | Vacuum/Heating/Dispersing |
| Vacuum degree | Up to -0.098MPa |
