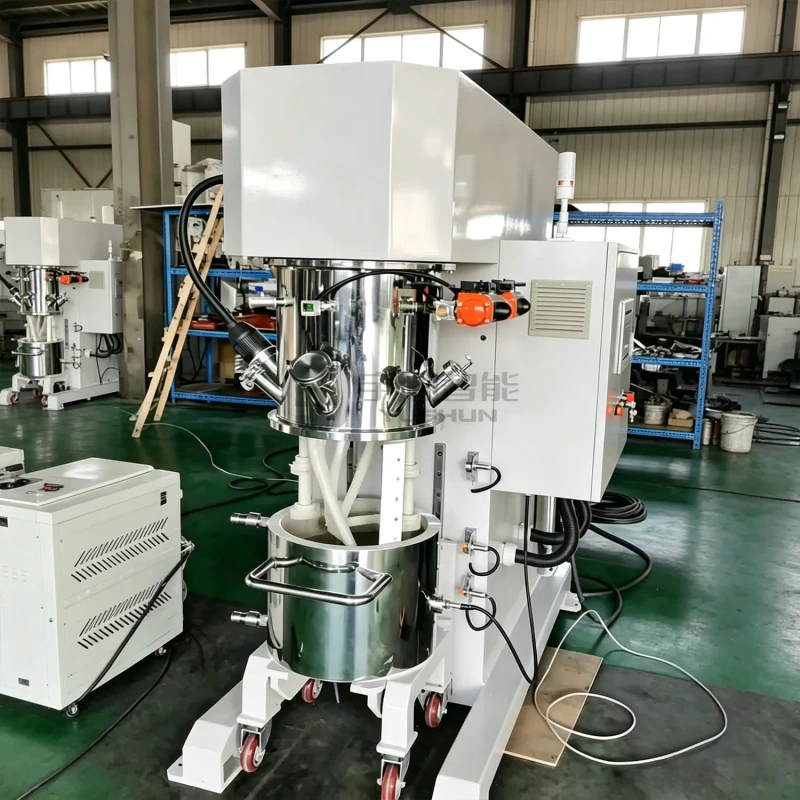

YuShun Custom dental materials 20L double planetary mixer with white zirconia coating
YuShun Custom dental materials 20L double planetary mixer with white zirconia coating
| material processed | Plastics, Chemicals, Battery Paste | Capacity | 20 L |
| mixer type | vacuum mixer | material | SUS304, SUS316 |
| product type | Adhesives / Lithium Battery Slurry / Putty | Configuration | Vertical |
| additional capabilities | Dispersing/Mixing/Vacuum/Heating/Cooling | voltage | 220-600V |
| Power (kW) | 2.2 | Motor Type | AC Motor |
| core components | Motor, Gear, Gearbox, Pump, PLC, Bearing, Engine | machinery test report | Provided |
| video outgoing-inspection | Provided | key selling points | Energy conservation/multi-function/high efficient |
| weight (kg) | 570 | range of spindle speed(r.p.m) | 0 - 84 r.p.m |
| dimension(l*w*h) | 1350*800*1800 mm | Machine Type | Dispersing and Mixing |
| Production capacity | 20L ( Optional 2-3000L working volume) | Material viscosity | under 1,000,000 cps |
| Solid content | under 90% | Revolution Motor | 2.2 KW |
| Tank size | 300*250 mm | Custom | Customizable explosion-proof |
| Mixing Paddles | Blade (Frame / Multi-layer / Twist) + High Speed Shaft + Scraper | Function | Vacuum/Heating/Dispersing |
| Vacuum degree | Up to -0.098MPa |
