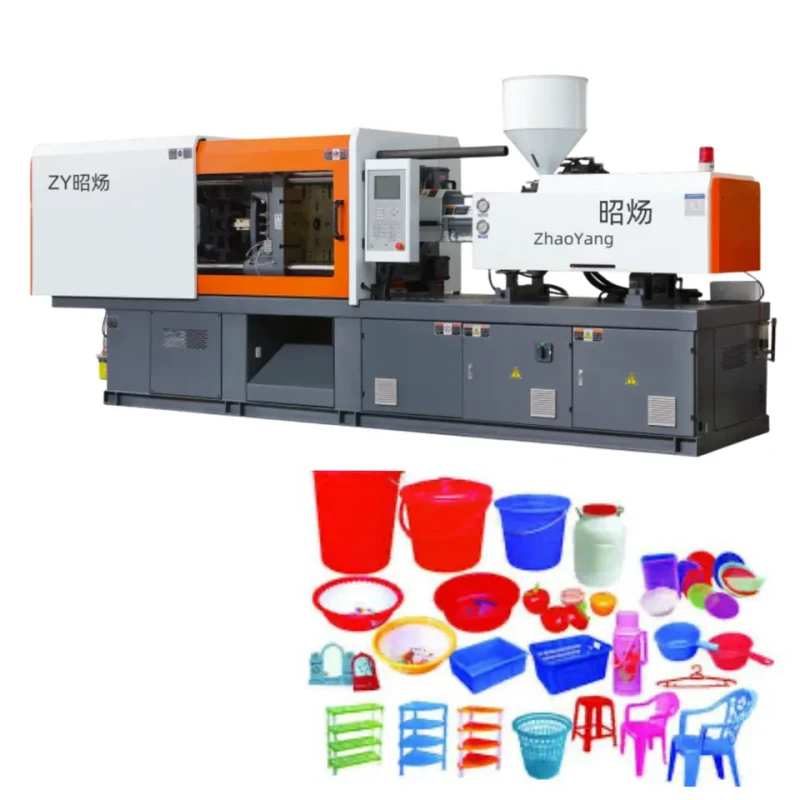

ZY1400S Low Price Cost China Plastic Chair Fruit Vegetable Basket Making Injection Molding Moulding Machine
ZY1400S Low Price Cost China Plastic Chair Fruit Vegetable Basket Making Injection Molding Moulding Machine
| machine type | Hydraulic, Other | distance between tie bars | 420x420 mm |
| plastic processed | PP, PET, PE, HDPE/PP | style | Horizontal |
| key selling points | High-Accuracy | ejector number | 1 |
| core components | Motor, PLC, Engine, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 115 |
| injection weight (g) | 246 | injection rate (g/s) | 132 |
| weight (kg) | 4000 | power (kw) | 380 |
| mold height(mm) | 160 - 450 mm | ejector stroke(mm) | 120 |
| ejector force(kn) | 50 | theoretical shot volume(cm³) | 270 |
| screw speed (rpm) | 0 - 190 rpm | screw diameter (mm) | 48 |
| Screw L/D Ratio | 20.5 | open stroke(mm) | 435 |
| Max pump pressure | 147Mpa | Pump motor power | 15kw |
| Heating power | 9.3kw | Clamping force | 1400 |
| Screw LD ratio | 20.5LD | Shot volume | 270cm |
| Marketing Type | Ordinary Product |
