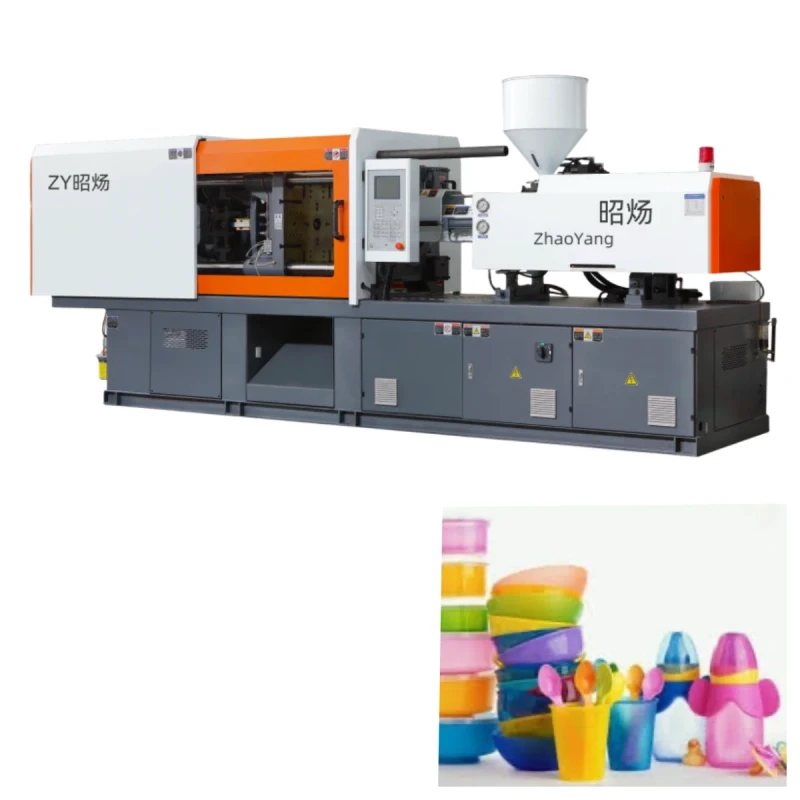

ZY2700 B 270tons Fully Automatic Injection Molding Machinery Making Plastic Bottle
ZY2700 B 270tons Fully Automatic Injection Molding Machinery Making Plastic Bottle
| machine type | Hydraulic, Other | distance between tie bars | 580*580 |
| plastic processed | PP, PET, PE, HDPE/PP | style | VERTICAL |
| key selling points | High-Accuracy | core components | Motor, PLC, Engine, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 700 | injection weight (g) | 503 |
| injection rate (g/s) | 227 | weight (kg) | 7600 |
| power (kw) | 380 | mold height(mm) | 200 - 550 mm |
| ejector stroke(mm) | 150 | ejector force(kn) | 70 |
| theoretical shot volume(cm³) | 550 | screw speed (rpm) | 0 - 210 rpm |
| screw diameter (mm) | 55 | Screw L/D Ratio | 22 |
| open stroke(mm) | 540 | Max pump pressure | 16Mpa |
| Pump motor power | 22kw | Heating power | 15kw |
| Oiltank cuage | 380L | Clamping force | 2700KN |
| Screw LD ratio | 22LD | Shot volume | 550cm |
| Marketing Type | Ordinary Product |
