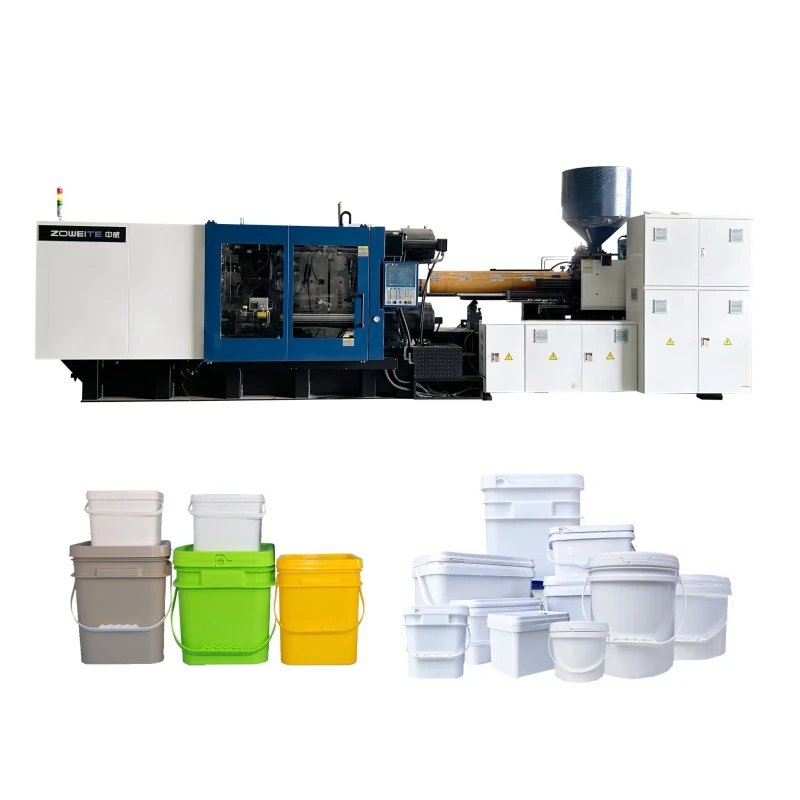

20 Liter Plastic Bucket Machine Paint Bucket Injection Molding Machine
20 Liter Plastic Bucket Machine Paint Bucket Injection Molding Machine
| machine type | Hydraulic | distance between tie bars | 920x868 mm |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP | style | Horizontal |
| key selling points | Stable performance | ejector number | 21 |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 607 |
| injection weight (g) | 2952 | injection rate (g/s) | 562 |
| weight (kg) | 28000 | power (kw) | 82 |
| mold height(mm) | 400 - 950 mm | ejector stroke(mm) | 250 |
| ejector force(kn) | 152 | theoretical shot volume(cm³) | 3268 |
| screw speed (rpm) | 0 - 180 rpm | screw diameter (mm) | 90 |
| Screw L/D Ratio | 21.1 | open stroke(mm) | 900 |
| Product name | Injection Molding Machine | Model | GF660LB |
| Function | plastic parts production | Application | Inserting Plastic Products |
| Motor | Servo Energy Saving | Machiner Dimensions(m) | 9.1m*2m*2.8m |
| Color | White + Blue | Advantages | energy saving |
| stable performance | short cycle time |
