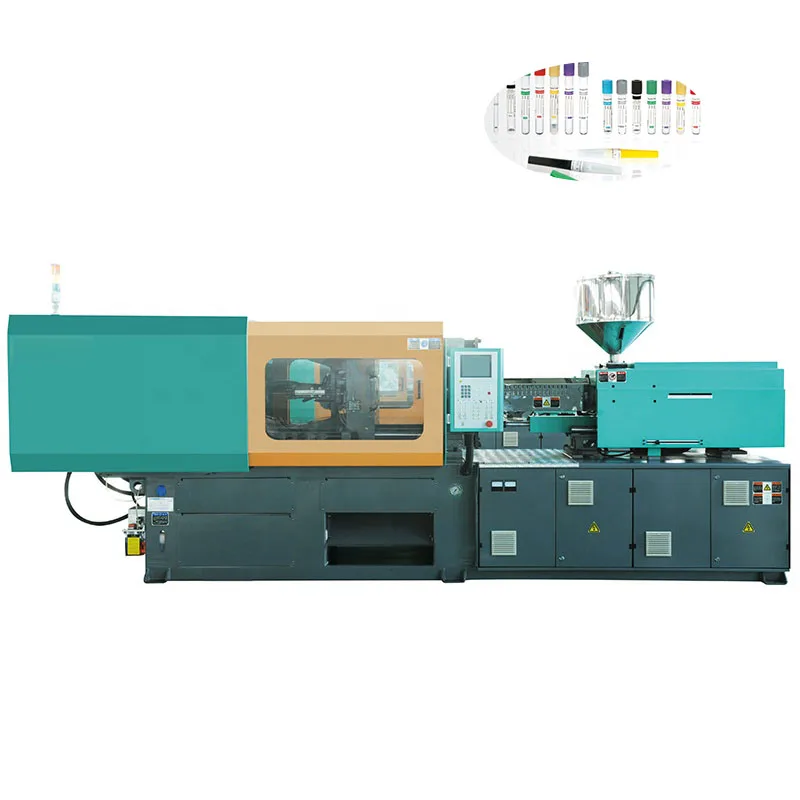

2800KN Full Auto Injection Molding Machine Price Small Plastic PP Injection Molding Machine
2800KN Full Auto Injection Molding Machine Price Small Plastic PP Injection Molding Machine
| machine type | Hydraulic | plastic processed | PP |
| style | Horizontal | key selling points | Automatic |
| ejector number | Other | core components | Motor, Pump, PLC, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 30 | injection weight (g) | 845 |
| injection rate (g/s) | 30 | weight (kg) | 10000 |
| power (kw) | 18 | mold height(mm) | 220 - 620 mm |
| ejector stroke(mm) | 160 | ejector force(kn) | 77 |
| theoretical shot volume(cm³) | 929 | screw speed (rpm) | 1 - 150 rpm |
| screw diameter (mm) | 65 | Screw L/D Ratio | 22 |
| open stroke(mm) | 570 | Product name | Disposable syringe with needle making injection molding machine |
| Tube material | PP | Plastic type | Thermoplastic |
| Screw speed | 0-150 r.p.m | Nozzle | 5 nozzles |
| Clamping force | 2800KN | Mold thickness(Min-Max) | 220~620mm |
| Syringe volume | 10ml, 20ml | Dimension(L*W*H) | 640*150*220cm |
