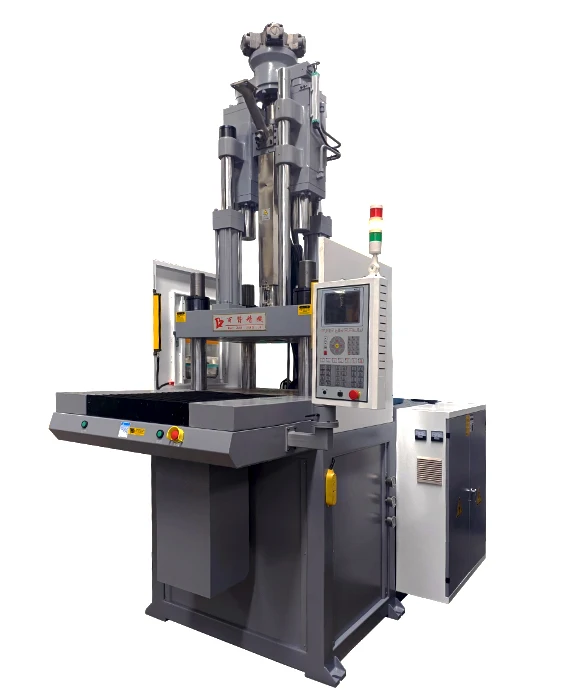

55T Variable Pump Full Automatic Mini Mesin Injeksi Plastik Injection Making Machine HM0111-30

55T Variable Pump Full Automatic Mini Mesin Injeksi Plastik Injection Making Machine HM0111-30
  • 55T Variable Pump Full Automatic Mini Mesin Injeksi Plastik Injection Making Machine HM0111-30

    • 55T Variable Pump Full Automatic Mini Mesin Injeksi Plastik Injection Making Machine HM0111-30

    Request a Quote
    machine typeHydraulicdistance between tie bars445*255mm
    plastic processedPP, PC, PVC, ABS, PE, PE/PP, ABS/PP, Polylactic AcidstyleVERTICAL
    key selling pointsCompetitive Priceejector number1
    core componentsBearing, Motor, Pump, Gear, Other, Pressure Vessel, PLC, Gearbox, Engine, Screwmachinery test reportProvided
    video outgoing-inspectionProvidedinjection weight (g)103 g
    injection rate (g/s)67 g/sweight (kg)2000 kg
    power (kw)13 kWmold height(mm)180 - 260 mm
    ejector stroke(mm)100 mmejector force(kn)17.2 kN
    theoretical shot volume(cm³)112 cm³screw speed (rpm)0 - 190 rpm
    screw diameter (mm)32 mmopen stroke(mm)200 mm
    Plastic TypeThermoplasticAutomaticYes
    After-sales Service ProvidedField maintenance and repair serviceKeywordmini mesin injeksi plastik
    Packing Dimension2.05*1.5*2.5MCooling water600-800L/hr
    Space between columns490*280mmInjection Pressure2057-1282kgf*m3
    Clamping Force (kN)20CertificationISO 9001:2008
