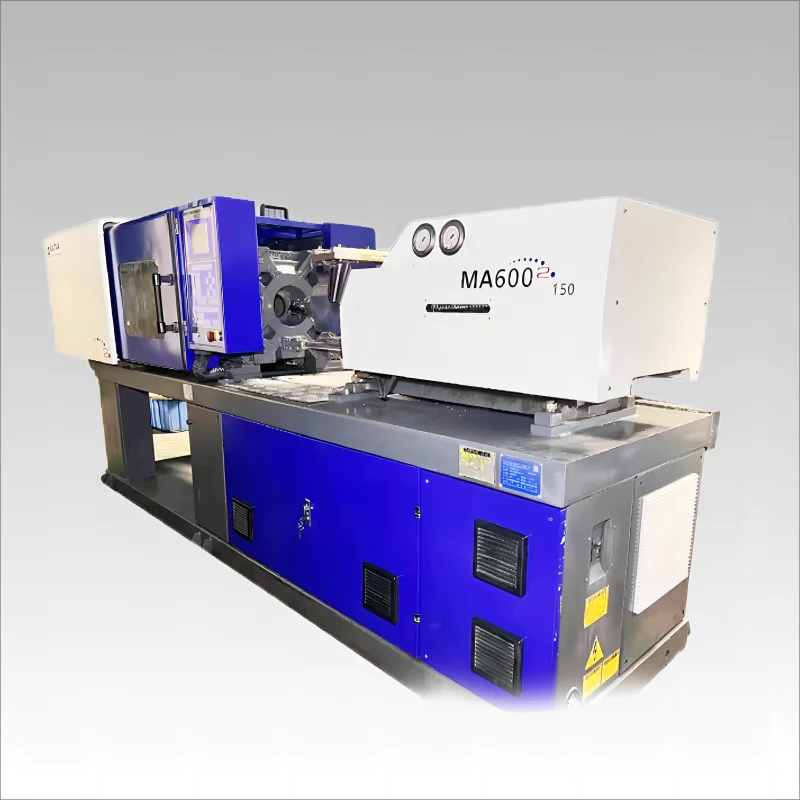

60 Ton Efficient And Energy saving Fully Automatic Servo Injection molding machine
60 Ton Efficient And Energy saving Fully Automatic Servo Injection molding machine
| machine type | Hydraulic | distance between tie bars | 310*310 |
| plastic processed | PP, Silicon, PC, ABS, PET, PVC, FRPP/PVC | style | Horizontal |
| key selling points | Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Energy Saving, High Productivity | ejector number | Other |
| core components | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Screw | machinery test report | Not Available |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 8.6 |
| injection weight (g) | 62 | injection rate (g/s) | 70 |
| weight (kg) | 2500 | power (kw) | 7.5 |
| mold height(mm) | 0 - 330 | ejector stroke(mm) | 70 |
| ejector force(kn) | 22 | theoretical shot volume(cm³) | 68 |
| screw speed (rpm) | 0 - 310 | screw diameter (mm) | 28 |
| Screw L/D Ratio | 20 | open stroke(mm) | 270 |
