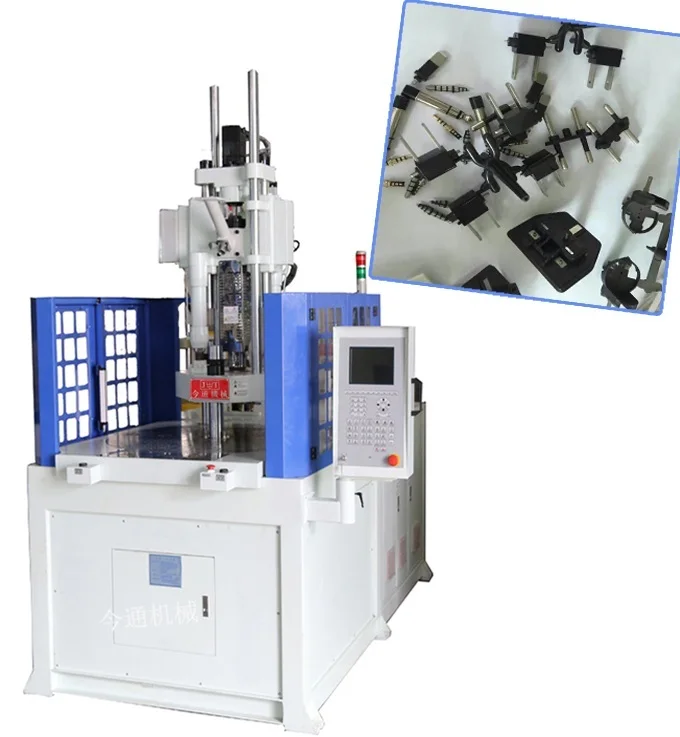

Full auto Vertical Rotary Injection Molding Machine 85T
Full auto Vertical Rotary Injection Molding Machine 85T
| machine type | Hydraulic | distance between tie bars | 560mm |
| plastic processed | PBT | style | VERTICAL |
| key selling points | Energy Saving | ejector number | 2 |
| core components | Bearing, Motor, PLC, Pressure Vessel | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 180 |
| injection weight (g) | 330 g | injection rate (g/s) | 167 g/s |
| weight (kg) | 4000 kg | power (kw) | 21.6 kW |
| mold height(mm) | 110 - 450 mm | ejector stroke(mm) | 75 mm |
| ejector force(kn) | 33 kN | theoretical shot volume(cm³) | 276 cm³ |
| screw speed (rpm) | 1 - 200 rpm | screw diameter (mm) | 50 mm |
| Screw L/D Ratio | 25 | open stroke(mm) | 500 mm |
| Opening Stroke | 280MM | screw diameter | 35mm 40mm 45mm |
| screw stroke | 190mm | Product name | full-auto plastic vertical rotary injection molding machineJTT-850R |
| opening force | 10.5T | rotary table diameter | 1180mm |
| max daylight | 500/560mm | min old height | 220/280mm |
| ejector force | 2.3T | Clamping Force (kN) | 850 kN |
