Professional Manufacturer of Plastic Processing Machinery

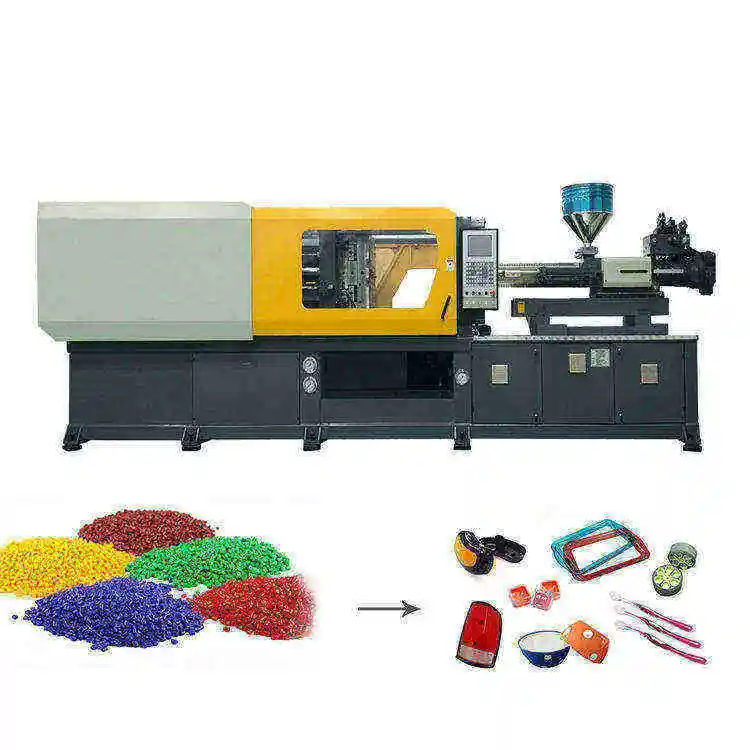

High Rigidity Metal Hydraulic Horizontal Molding Plastic Injection Machine
High Rigidity Metal Hydraulic Horizontal Molding Plastic Injection Machine
| machine type | Hydraulic, Electric | plastic processed | PP, PC, ABS, PVC |
| style | Horizontal | key selling points | High Rigidity |
| core components | Motor, PLC, Gearbox | machinery test report | Provided |
| video outgoing-inspection | Provided | injection weight (g) | 447 g |
| injection rate (g/s) | 447 g/s | weight (kg) | 6800 kg |
| power (kw) | 18.5 kW | ejector stroke(mm) | 125 mm |
| ejector force(kn) | 53.1 kN | theoretical shot volume(cm³) | 491 cm³ |
| screw diameter (mm) | 50 mm | open stroke(mm) | 530 mm |
| Plastic Type | thermoplastic | Automatic | YES |
| Screw L/D | 23.1 | Injection pressure | 2150kg/cm2 |
| Screw stroke | 250mm | Heating power | 16.6kw |
| Opening stroke | 500mm | Max daylight | 1030 |
| After-sales Service Provided | Video technical support | Marketing Type | Other |
| Condition | New | Applicable Industries | Manufacturing Plant, Machinery Repair Shops |
| Showroom Location | Egypt, Canada, Algeria | Warranty of core components | 1 Year |
