Professional Manufacturer of Plastic Processing Machinery

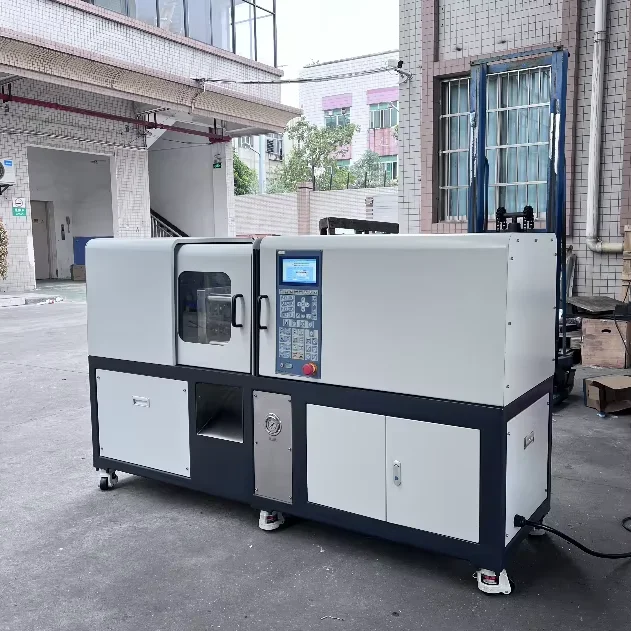

Horizontal Automatic Injection Molding Machine Supplier for PET ABS PP PC PA Materials
Horizontal Automatic Injection Molding Machine Supplier for PET ABS PP PC PA Materials
| machine type | Hydraulic | distance between tie bars | 290*170 |
| plastic processed | PP, PC, ABS, PET, PVC, FRPP/PVC, HDPE, PA, LDPE, PE, HDPE/PP | style | Horizontal |
| key selling points | Long Service Life, Easy To Operate | ejector number | 2 |
| core components | Bearing, Motor | machinery test report | Provided |
| video outgoing-inspection | Provided | plasticizing capacity(g/s) | 20 |
| injection weight (g) | 66 | injection rate (g/s) | 66 |
| weight (kg) | 800 | power (kw) | 4.2 |
| mold height(mm) | 1 - 80 | ejector stroke(mm) | 300 |
| ejector force(kn) | 13 | theoretical shot volume(cm³) | 40 |
| screw speed (rpm) | 100 - 300 | screw diameter (mm) | 26 |
| Screw L/D Ratio | 26 | open stroke(mm) | 300 |
| Screw diameter | 26mm | Injection pressure | 1677kg square centimeters |
| Injection volume | 66g | Shooting stroke | 90mm |
| Shooting time | 0.8s | Locking force | 18T |
| Locking stroke | 300-350mm | Mold size | 290 * 380mm |
| Column dimensions | 150 * 250mm | motor | 3kw |
