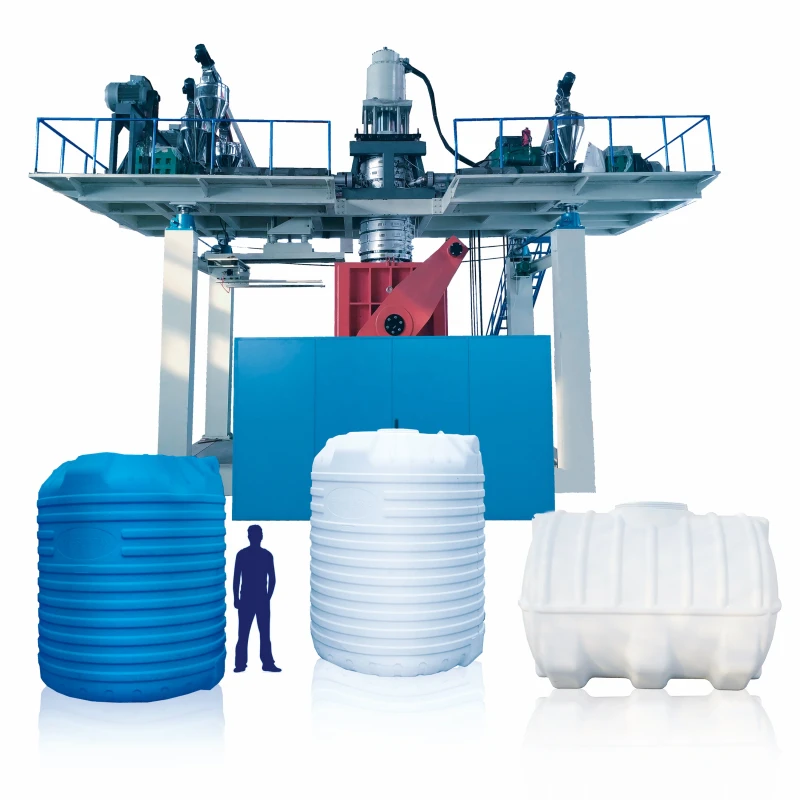

Plastic Water Tank Drum Pallet IBC Float Boat Making Machine

Plastic Water Tank Drum Pallet IBC Float Boat Making Machine
  • Plastic Water Tank Drum Pallet IBC Float Boat Making Machine

    • Plastic Water Tank Drum Pallet IBC Float Boat Making Machine

    Request a Quote
    plastic processedPE, HDPEClamping Force (kN)800
    voltage380-415VautomationAutomatic
    core componentsPLC, Gearbox, Motorkey selling pointsEnergy Saving
    machinery test reportProvidedvideo outgoing-inspectionProvided
    output (kg/h)240 kg/hpower (kw)40
    weight (t)25dimension(l*w*h)10*3*5
    screw diameter (mm)110 mmscrew heating power(kw)31.5 kW
    extruder motor power(kw)40 kWmold platen size(width)(mm)1350 mm
    mold platen size(height)(mm)1350 mmair pressure(mpa)0.8 MPa
    air comsumption(m³/min)0.2 m³/mindie head heating power(kw)30 kW
    Blow Moulding TypeExtrusion Blow MouldingAutomaticYes
    After-sales Service Provided1Field installation, commissioning and trainingAfter-sales Service Provided2Engineers available to service machinery overseas
    Weight25TONCertificationCE and ISO9001:2008
    Clamping Force800KNPower229-292KW
    Marketing TypeOrdinary Product
