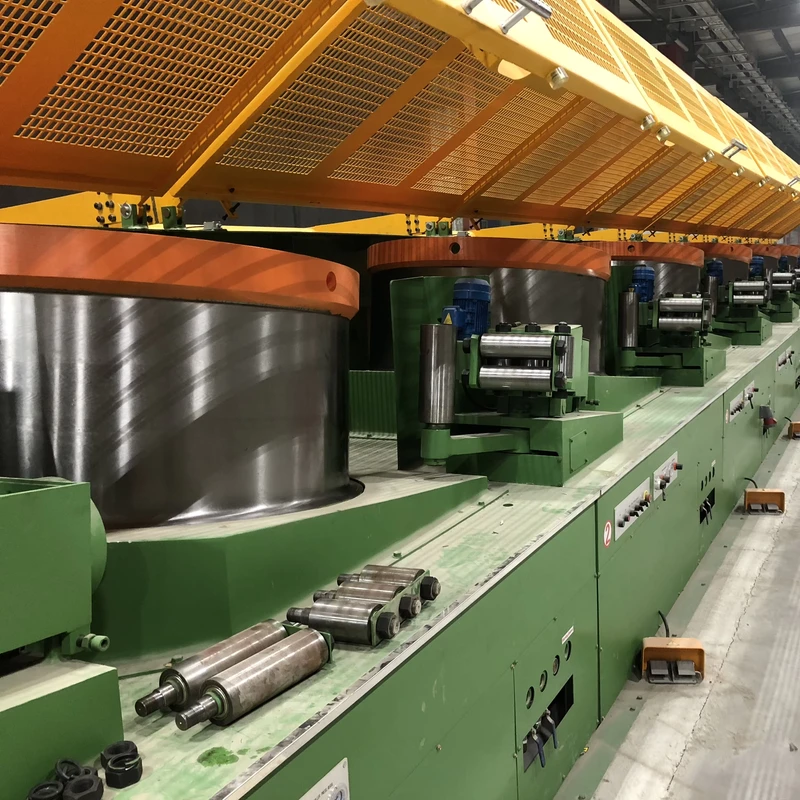

Prestressed Concrete Steel Wire Drawing Machine
Prestressed Concrete Steel Wire Drawing Machine
| voltage | As required | core components | Gearbox, Gear, Bearing, Motor, PLC |
| machinery test report | Provided | video outgoing-inspection | Provided |
| key selling points | High Productivity | inlet diameter | 16mm(Max.) |
| outlet diameter | 3mm(Min.) | power(w) | 132KW |
| Weight (KG) | 40000 | dimension(l*w*h) | As designed |
| Type | pre-stressed concrete steel wire drawing machine | Inlet diameter | 16mm(Max.) |
| Outlet diameter | 3mm(Min.) | Number of capstan | 9 |
| Capstan diameter | 1200mm | Take-up spool size | 1120/1250mm |
| Capstan surface hardness | ≥HRC 60 | Cooling type | Inner water cooling and outer wind cooling |
| Line speed | 5-7m/s |
