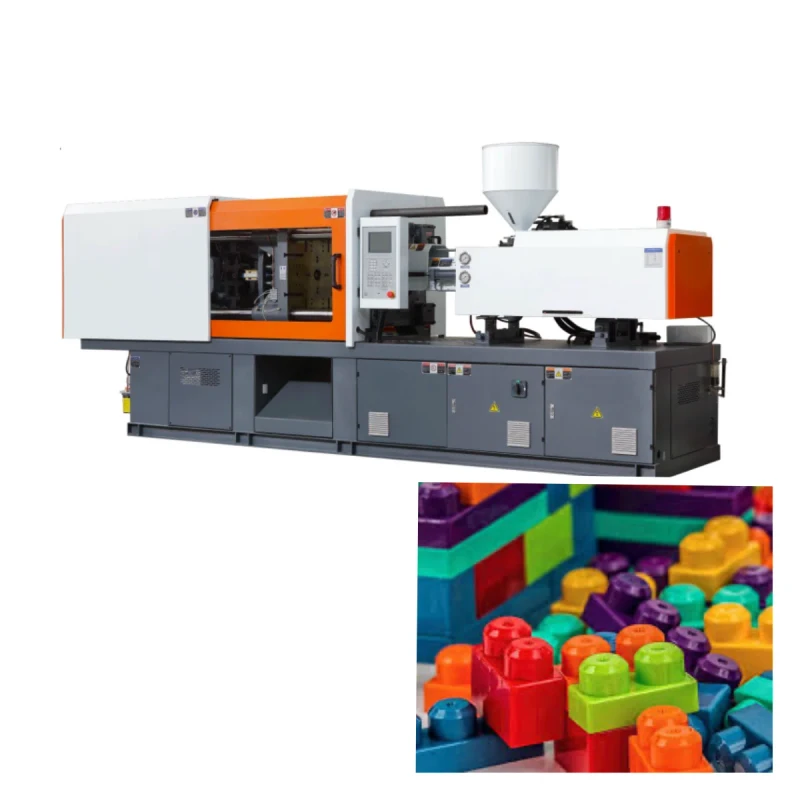

ZY520tons Good Quality Horizontal Plastic Product Injection Molding Machine
ZY520tons Good Quality Horizontal Plastic Product Injection Molding Machine
| machine type | Hydraulic, Other | distance between tie bars | 820*800 |
| plastic processed | PP, PET, PE, HDPE/PP | style | Horizontal |
| key selling points | High-Accuracy | core components | Motor, PLC, Engine, Screw |
| machinery test report | Provided | video outgoing-inspection | Provided |
| plasticizing capacity(g/s) | 400 | injection weight (g) | 1560 |
| injection rate (g/s) | 386 | weight (kg) | 21000 |
| power (kw) | 380 | mold height(mm) | 330 - 810 mm |
| ejector stroke(mm) | 240 | ejector force(kn) | 150 |
| theoretical shot volume(cm³) | 1727 | screw speed (rpm) | 0 - 175 rpm |
| screw diameter (mm) | 75 | Screw L/D Ratio | 23.7 |
| open stroke(mm) | 760 | Max pump pressure | 16Mpa |
| Pump motor power | 55kw | Heating power | 33kw |
| Oiltank cuage | 880L | Clamping force | 5200KN |
| Screw LD ratio | 23.7LD | Shot volume | 1727cm |
| Marketing Type | Ordinary Product |
